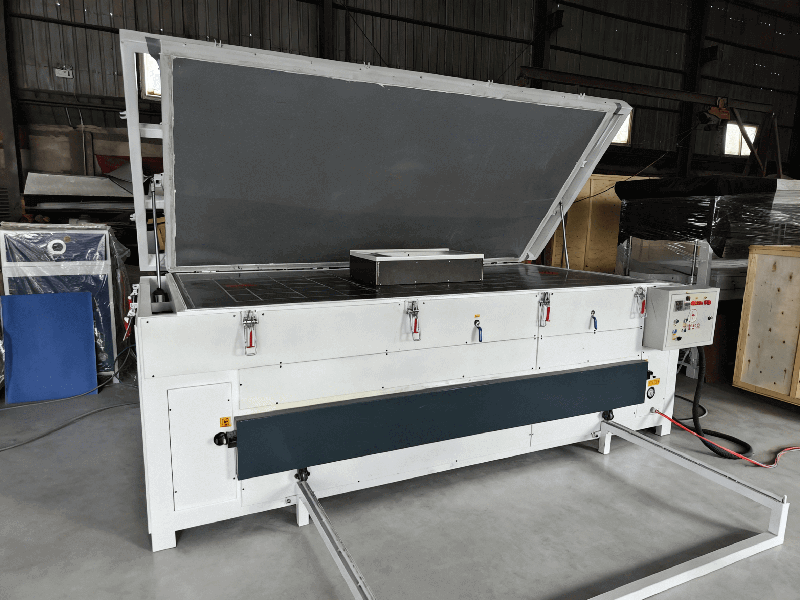

VMP-B vacuum press for 3D thermoforming acrylic & thermoplastic sheets
Application
VMP-B vacuum membrane press is engineered for precision pre-heating and thermoforming of solid surface materials (CORIAN®, HI-MACS®, STARON®, Hanex®, Avonite®, Krion®)plywood and advanced thermoplastics including acrylic and PVC. Equipped with advanced vacuum forming technology and precision temperature control systems,enabling the production of seamless curved surfaces, ergonomic contours, and innovative architectural elements for high-end interior applications.
Technical data
Model | VMP-B (2513) |
Working Area | 1300 x 2500 mm (Accept customized) |
Oven Inside Size | 1000 x 2000mm |
Max Thickness of Materials(mm) | 20mm |
Thickness of Silicone Rubber | 3mm |
Max Forming Height( mm) | 500mm |
stretch rate of Silicone Membrane | 700% |
The Max Temperature Silicone Membrane | -240℃ |
Heating Method | Up & down Infrared heating tube(or stainless steel heating tube ) |
Total Power | 21kW |
The Max Vacuum Pressure | 9t/m2 |
Vacuum Pump Output(m3/h) | 100 m3/h 3KW |
Vacuum Tank | Included (1m length*320mm diameter) |
Operational Vacuum, MPa | -0.085 MPa |
Working Voltage | 380V, 50/60Hz,3Ph |
Net Weight | 1000kgs |
Overall Size(mm) | 3010x1550x1140mm |
Package Size | No.1:3.1*1.65*1.4m 7.2CBM No.2:1.2*0.9*1.1m 1.2CBM |
Mainly information

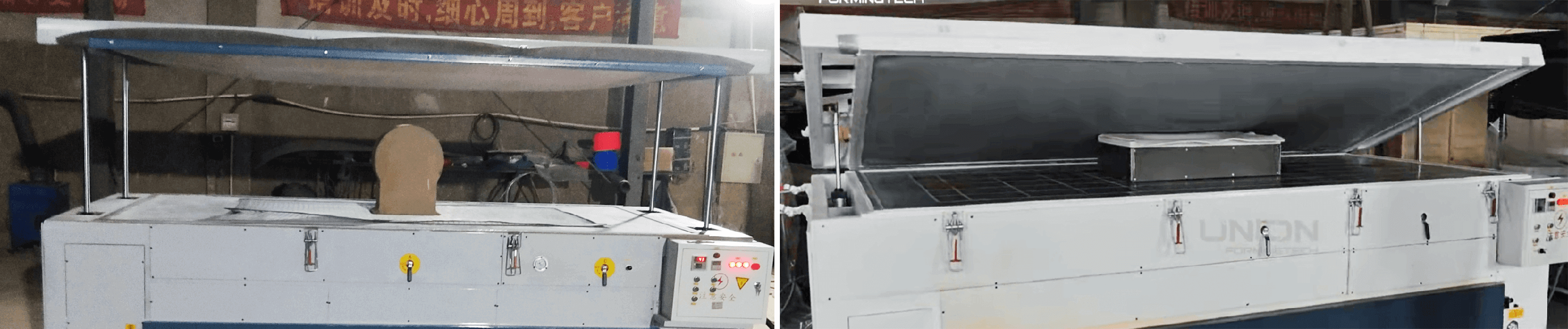

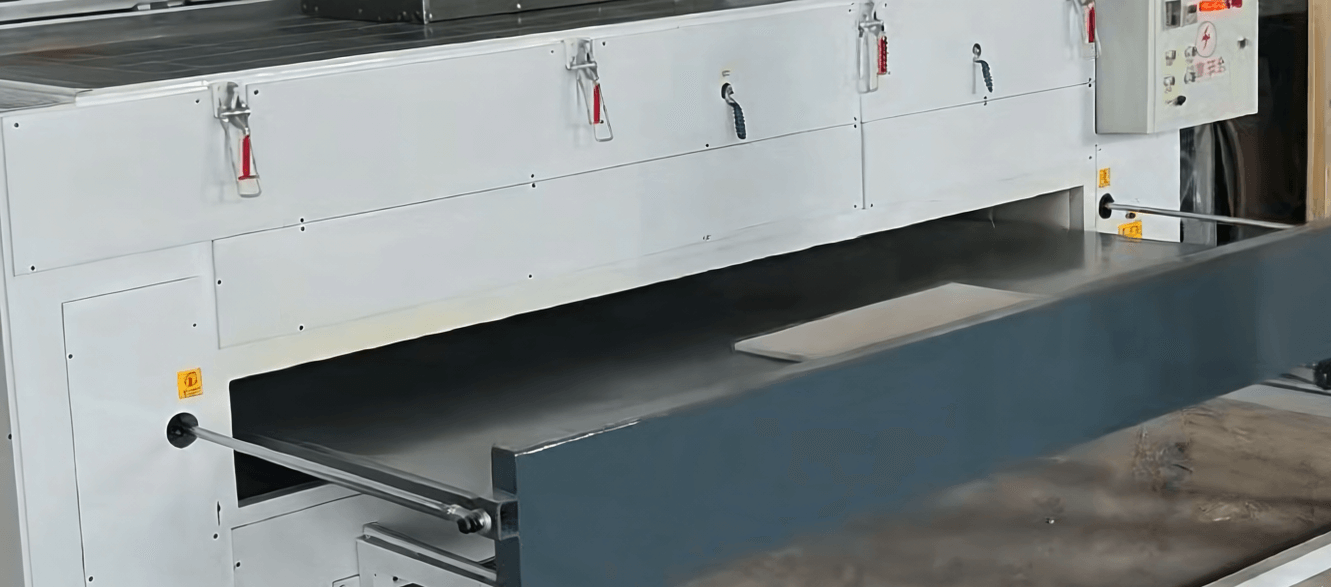

1.Automatic opening heating oven
The automatic opening heating oven makes it easier to load and unload Corian or plastic sheets.
2.Automatic lifting pressure frame
Double pressure frame design,both can finish autoomatic lifting,no need human use more power to close the press frame.
3.Important material high elastic silicone membrane
Our vacuum membrane press machine use 3mm thickness silicone membrane with 700% elasticity, can be heated to 240℃，maximum forming height could reach 500mm

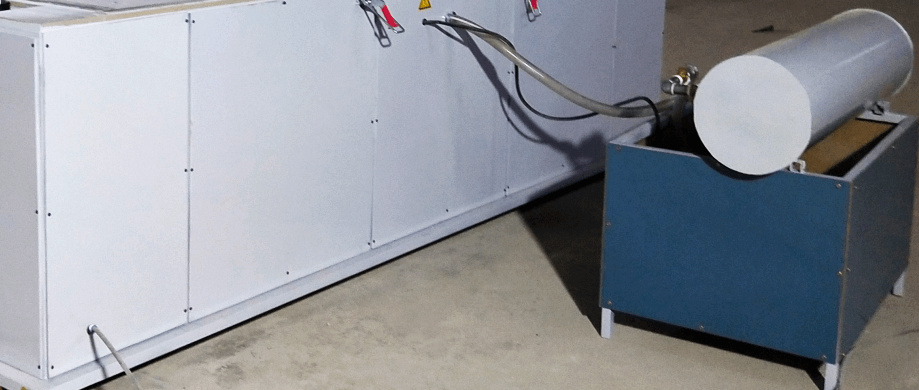

4.100M3/h Vacuum pump and Install vacuum tank
For every vacuum membrane press install 100M3/H Shanghai vacuum pump, meantime install 238L big vacuum tank, this way get a better vacuum suction effect,extend the service life of the vacuum pump.

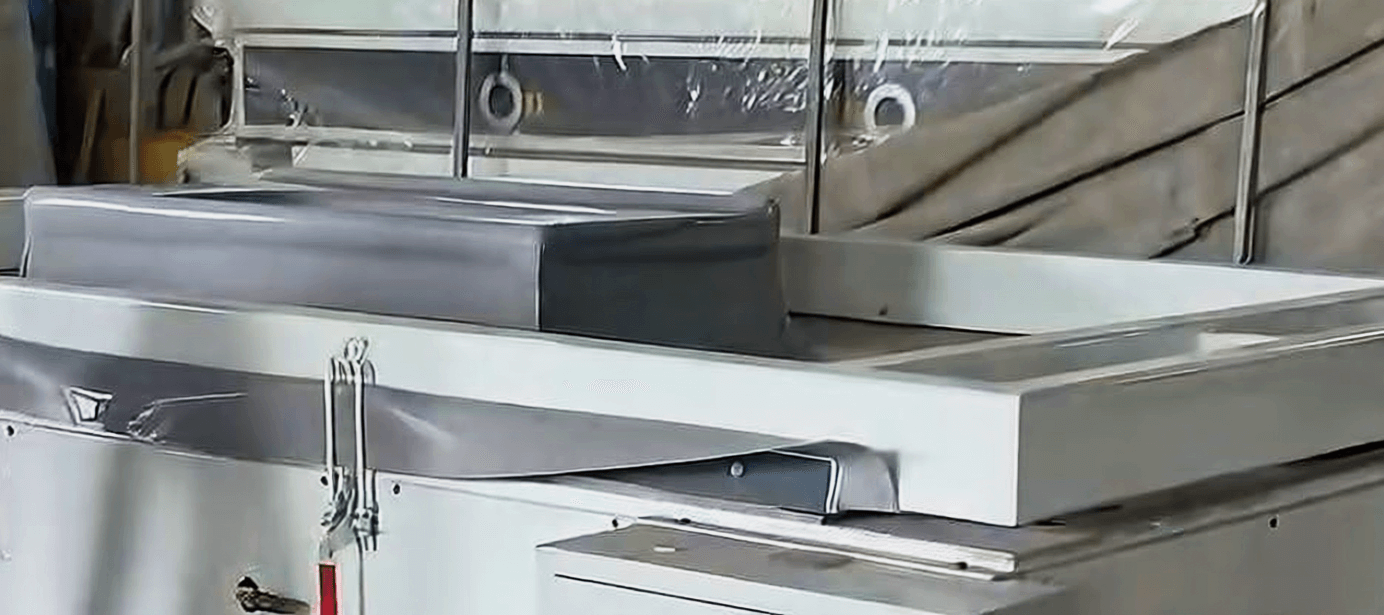

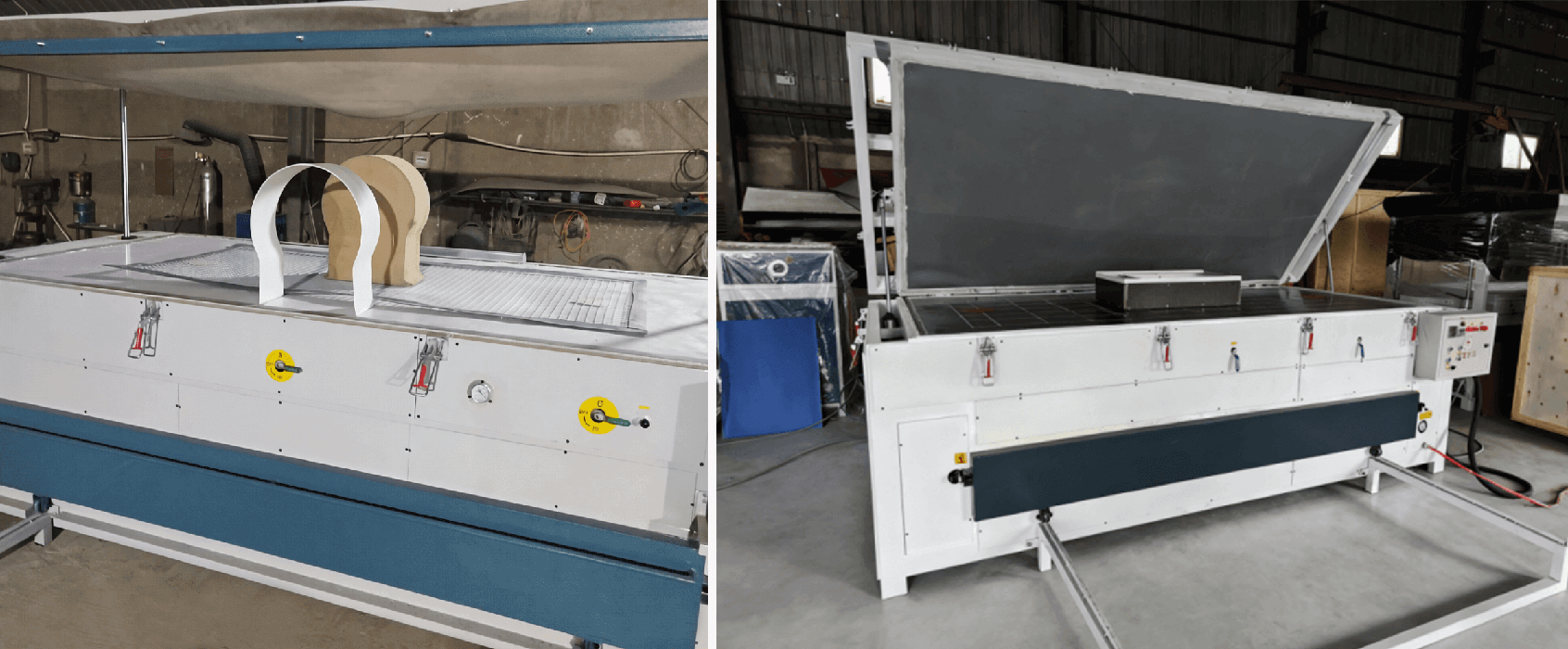

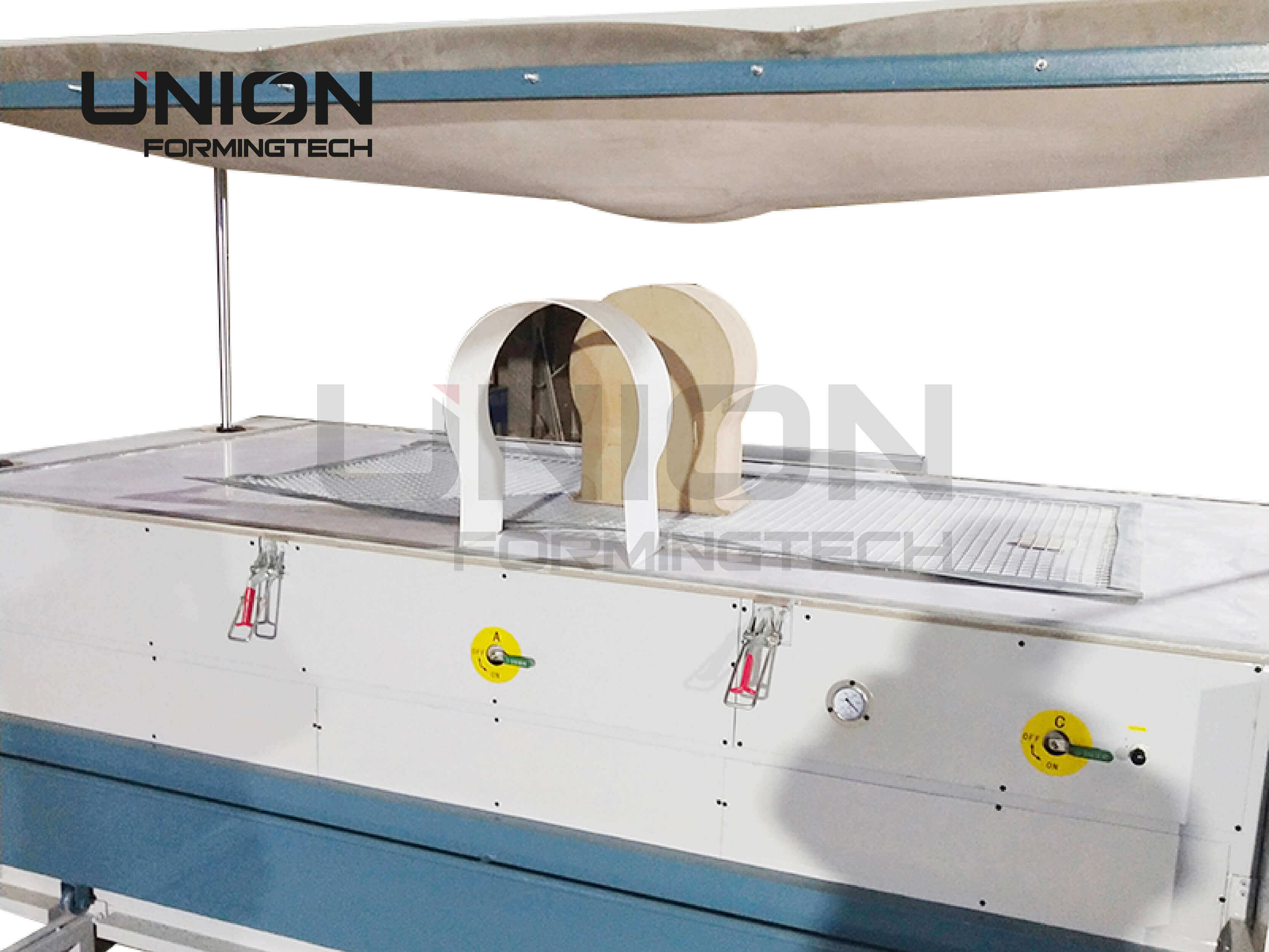

Detail photo

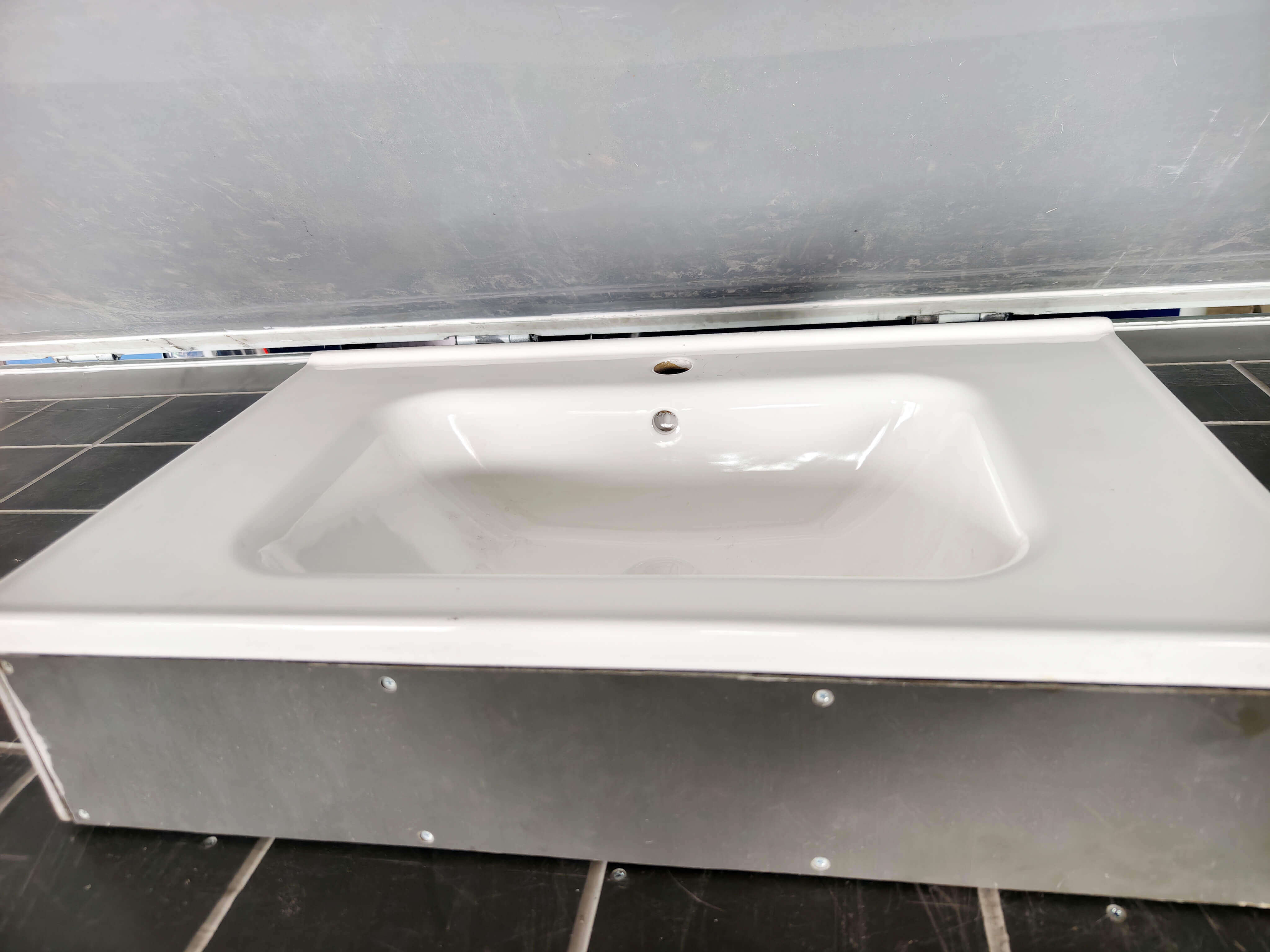

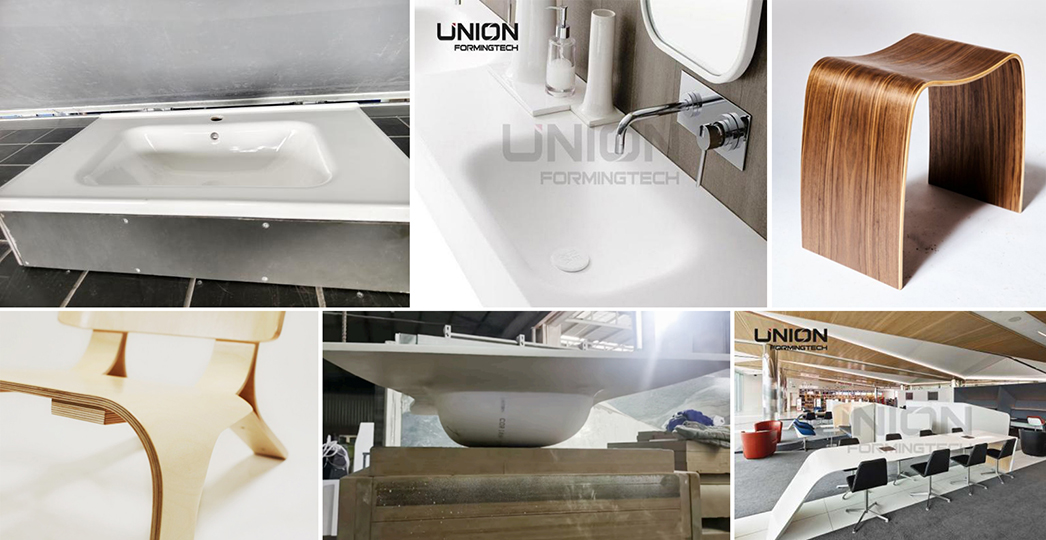

Finish samples

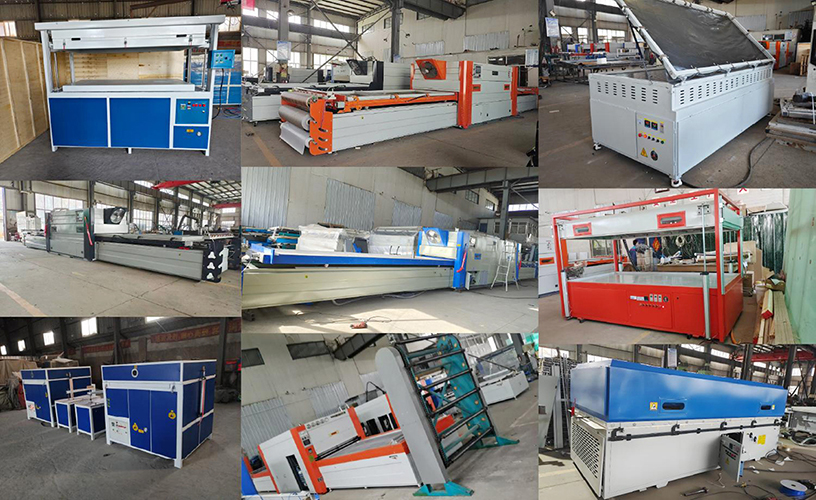

Factory products photo
