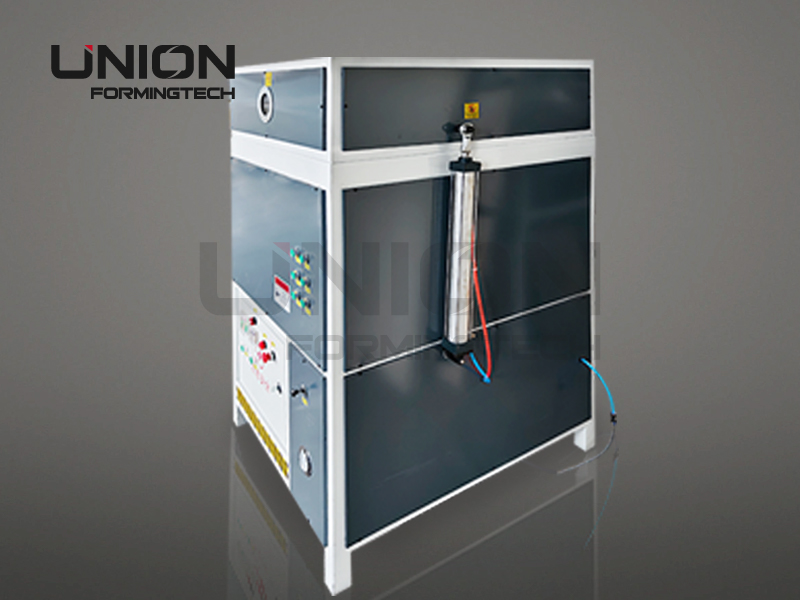

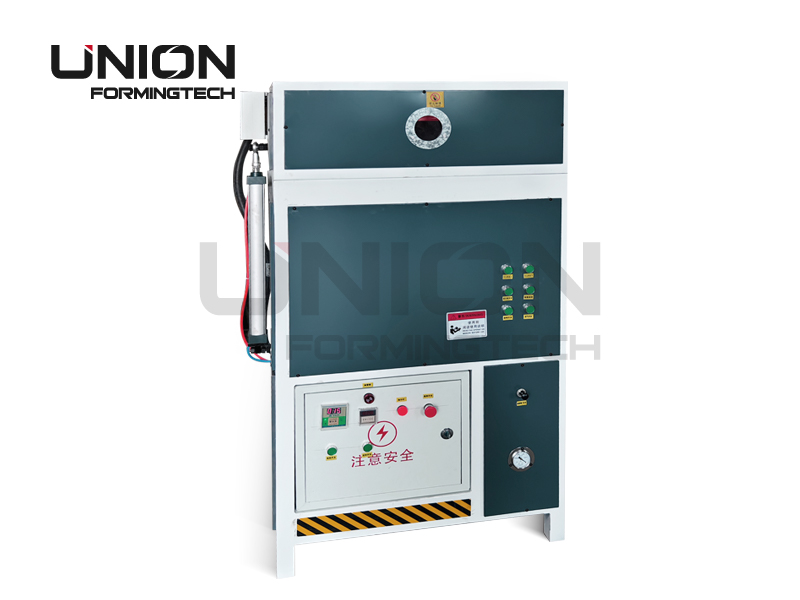

VFM-600ABS PET Acrylic vacuum thermoforming vacuum former for moulding,signage,package

Application Industry and material ：

1.Plastic moulding&mask making

2.Advertising signage making

3.University or research institutions teaching experiments

4.Chocolate and cake package box making

5.Industrial & automobile decoration

6.Other thermoplastic material forming industrial

7.Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.

Machine operating principle:

Using the vacuum suction produced by the vacuum pump, the thermoplastic plastic sheets such as Acrylic ABS PVC and PET after heating and softening are molded into various shapes of vacuum covers, blister trays, bubble shells, etc

Mainly information:

1. Intelligent Temperature Control System

Features a custom-shaped reflector and thickened insulation layer for rapid heating, excellent thermal retention, and enhanced safety.

2. Precision Heating Module

Factory-customized for 24/7 continuous operation, with an 8,000-10,000-hour lifespan. Maintains ±5°C temperature stability to ensure uniform plate softening.

3. High-Efficiency Forming Platform

Constructed with high-temperature resistant alloy steel for durability. Single-mold forming system enables user-friendly operation, reducing material waste and labor costs.

4. Pneumatic Lift Mechanism

Equipped with a cylinder-controlled adjustable platform for smooth height adjustment and increased molding capacity. Upgraded high-power vacuum pump ensures refined surface finish and precision forming.

5. Energy-Storage Optimization

Integrated air storage tank stabilizes airflow, prolonging vacuum pump lifespan. Delivers strong suction force during molding to enhance forming quality.

Technical data:

1. Suitable material : Acrylic,PVC,ABS thermoplastic material

2. Material size ：600*600mm

3. Press frame inside size :500*500mm

4. Max products size:480*480mm

5. Max forming height:300mm

6. Material thickness:0.5-3mm (ABS can be more)

7. Function: Suction

8. Vacuum tank:Yes(L*W:500*320mm)

9. Vacuum pump:40m3/h

10. Power:8KW

11. Working voltage:220V50HZ1P

12. Overall size:1100*950*1600mm

13. Net Weight:300kgs

14. Plywood package size:1300*1150*1800mm

15. Gross Weight:350kgs
