VFM-460 Small Mini tabletop DIY vacuum forming machine for acrylic ,abs and PVC material

Machine application:

Thermoplastic molding machine, also known as thermoplastic molding machine, is the thermoplastic plastic coil heated plasticized Acrylic, ABS, PVC, PE, PP, PET, HIPS and other thermoplastic material sucked into various shapes of advanced packaging boxes, advertising light box, bathtub, decoration.

Machine operating principle:

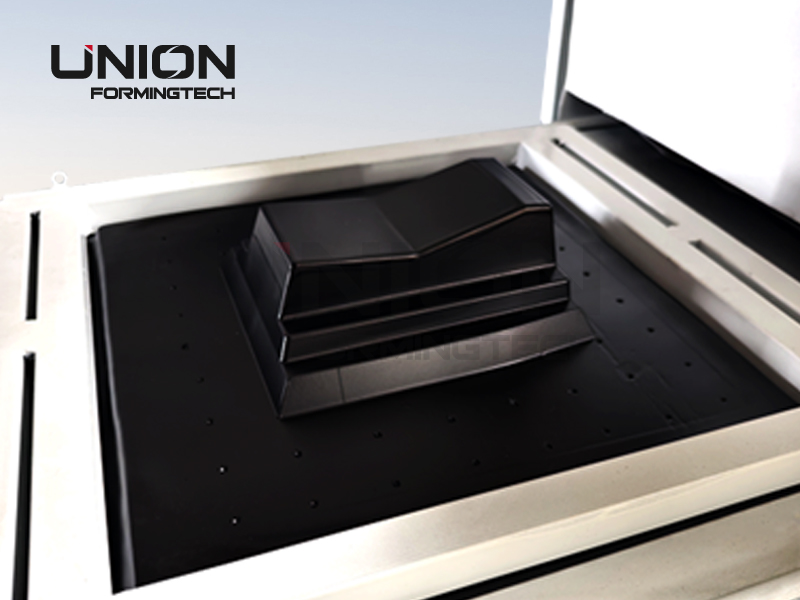

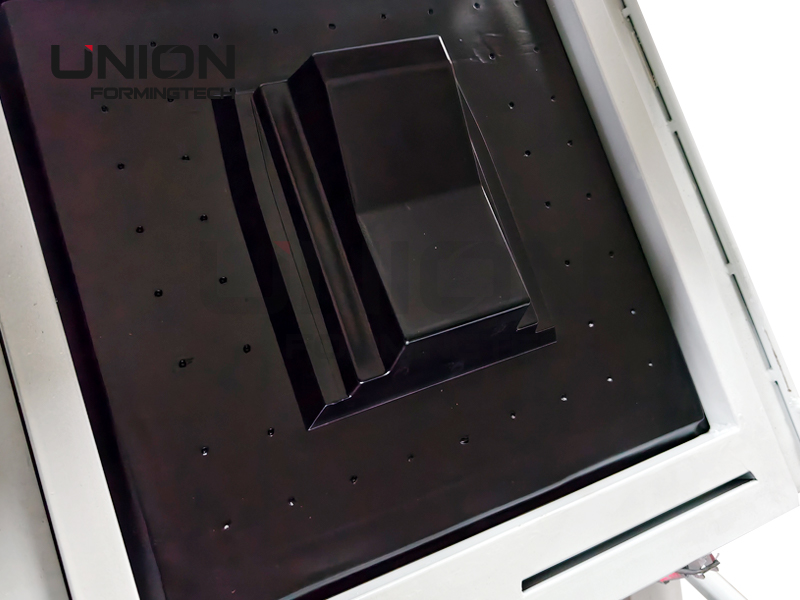

Using the vacuum suction produced by the vacuum pump, the thermoplastic plastic sheets such as Acrylic ABS PVC and PET after heating and softening are molded into various shapes of vacuum covers, blister trays, bubble shells, etc

Working process:

Clamp sheet -- moved heating box -- heating -- taken heating box -- mould up -- cooling -- mould down -- clips loose -- take finished products

Mainly information:

1. Simple structure in linear type ,easy operation

2. Single working station,heating oven with protect lid

3. Professional vacuum pump ,promise the forming effect.

4. Heater adopts infrared ray heating system which can finish quickly heat raise

5. High-temperature resistant pressure frame, no deformation after long-term use

Technical data:

1. Suitable material : Acrylic,PVC,ABS thermoplastic material

2. Material size ：460*460mm

3. Press frame inside size :400*400mm

4. Max products size:350*350mm

5. Max forming height:150mm

6. Material thickness:0.5-1.5mm

7. Function: Suction

8. Vacuum tank: No

9. Vacuum pump:15m3/h

10. Power:3KW

11. Working voltage:220V50HZ1P

12. Overall size :1300*660*780mm

13. Net Weight:160kgs

14. Plywood package size:1500x810x980mm

15. Gross Weight:180kgs
