Detail information :

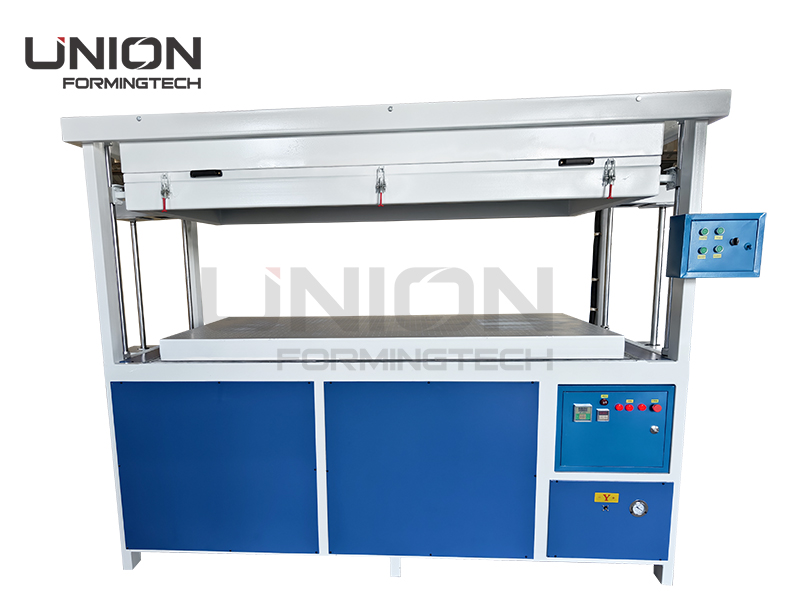

The equipment adopts modular design, and realizes precise material forming through efficient and uniform heating system and vacuum adsorption technology, ensuring high fit and surface texture between the coating material and the substrate.

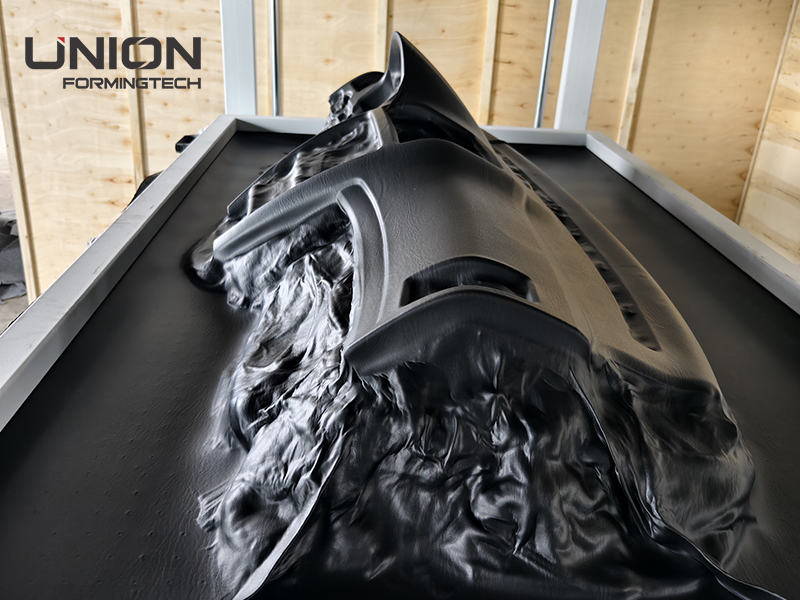

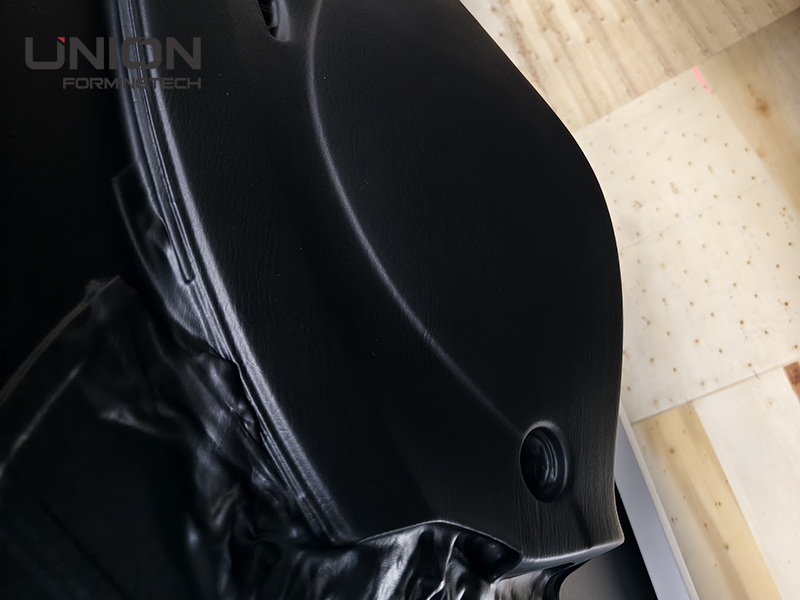

It is mainly used for leather overmolding of various types of automotive dashboards, and can also be used in small quantities for heating and vacuum forming of simple models of thermoforming materials such as PVC, PET, acrylic, ABS, etc. The equipment has high working stability, simple operation and low maintenance cost.

1. The equipment uses halogen heating tubes for heating, and the electric heat conversion efficiency can reach 70%, which is about 30% more energy-saving than traditional infrared heating tubes. And the heating is more uniform and the service life is longer.

2. Use thickened honeycomb vacuum adsorption platform to ensure the strength of the work and achieve uniform adsorption effect during vacuum adsorption.

3. Install 100M3/h vacuum pump, 1500*320mm vacuum tank, high-power vacuum pump with vacuum tube, so that the working suction is greater and the service life of the vacuum pump is extended.

4. Adopting the design concept of foreign countries, using 4 guide columns plus double cylinders to control the lifting and lowering, which is more stable.

5. The equipment adopts an overall modular design, which is simple to maintain and easy to operate.

Technical data:

1.Material size: 1200x2300

2.Inner dimensions of press frame: 1080x2180

3.Maximum finished product size :1000x2080

4.Forming height: 550mm

5.Vacuum pump model:  xd100, motor power: 3 kW

6.Vacuum tank length: 1500mm diameter 320mm

7.Total power: 15 kW

8. Heating :15 halogen tubes for heating

9.Working voltage:380v50HZ 3P( 4 wire)

10.Weight: 800kg

11.Overall size (L*W*H):3100x1440x2150mm
