Application:

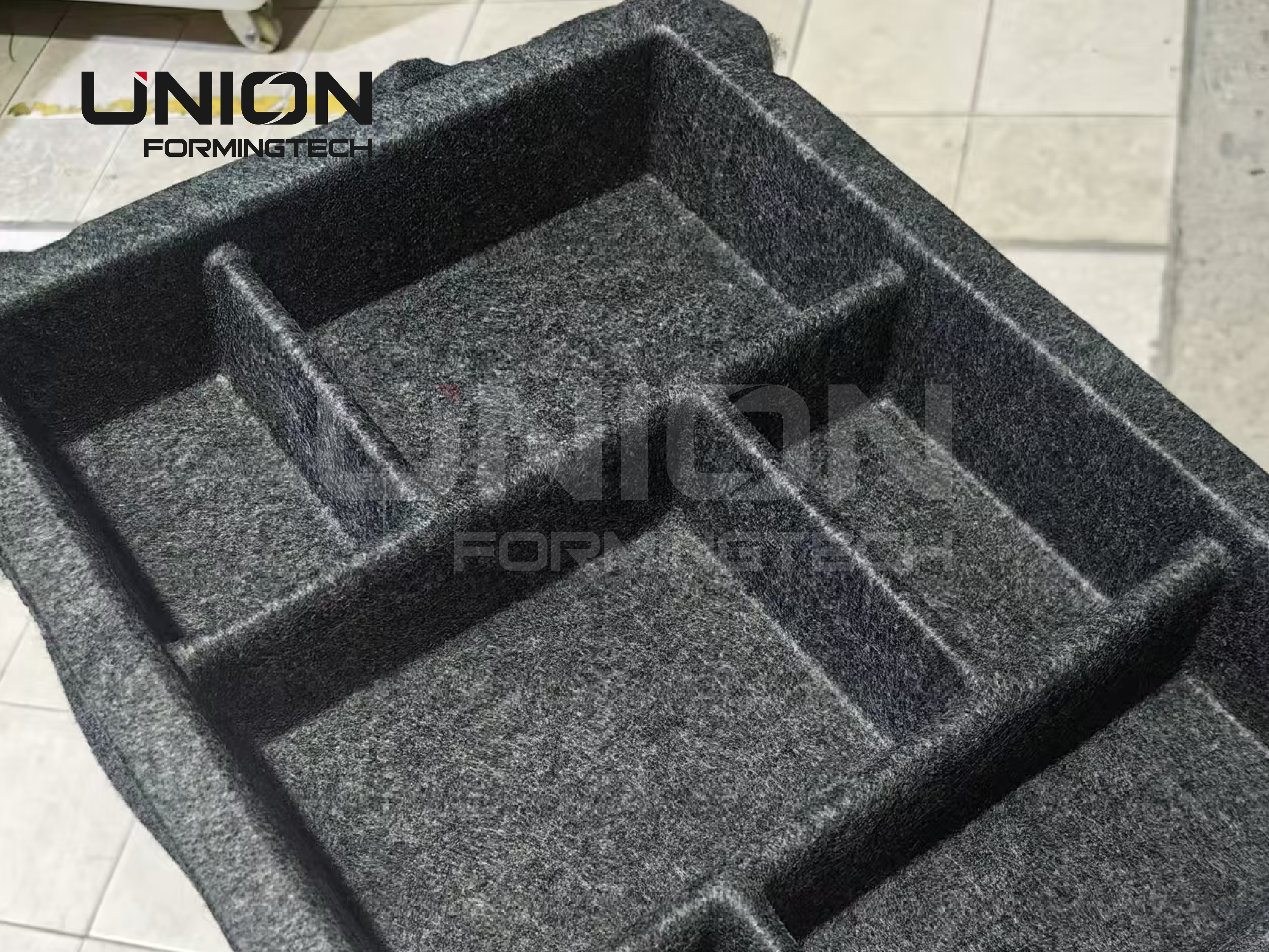

Pressing forming machine mainly use for eva,pvc,pet,xpe,felt,acrylic and other materials cold pressing.

This machine is suitable for handbag factory, luggage factory, leather factory, leather factory, rubber, shoe material factory, glasses case factory, EVA molding factory, sports equipment factory.

 Mainly information:

1. Four-column guide balance structure ensures uniform pressure on the work surface;

2. Hydraulic system device is used, with stable performance and low noise;

3. Single-stage or two-stage speed is set, and the two-stage speed is suitable for deep mold stretching.

4. The upper and lower work surfaces are equipped with cast aluminum plates, which can circulate cooling water, and the shaping effect is fast and good;

5. The two work surfaces share the motor oil pump and hydraulic control system, saving electricity and space;

6. Simple operation and durable, the electric control is set for manual and semi-automatic circulation, and is equipped with a grating device.

 Technical data:

1.Working table:600*700mm

2.Pressure:50tons

3.Structure:Three plate with four pillar,Up and down cooling aluminum sheet,IR safety protection device

4.Travel:400mm

5.Power:5.5KW

6.Down travel speed:50-70mm/s

7.Working voltage:380V50HZ3P

8.Overall size:1720*800*1700mm

9.Weight:2100kgs
