Function and features:

Special laminating machine for high gloss, high lines and handle-free cabinets

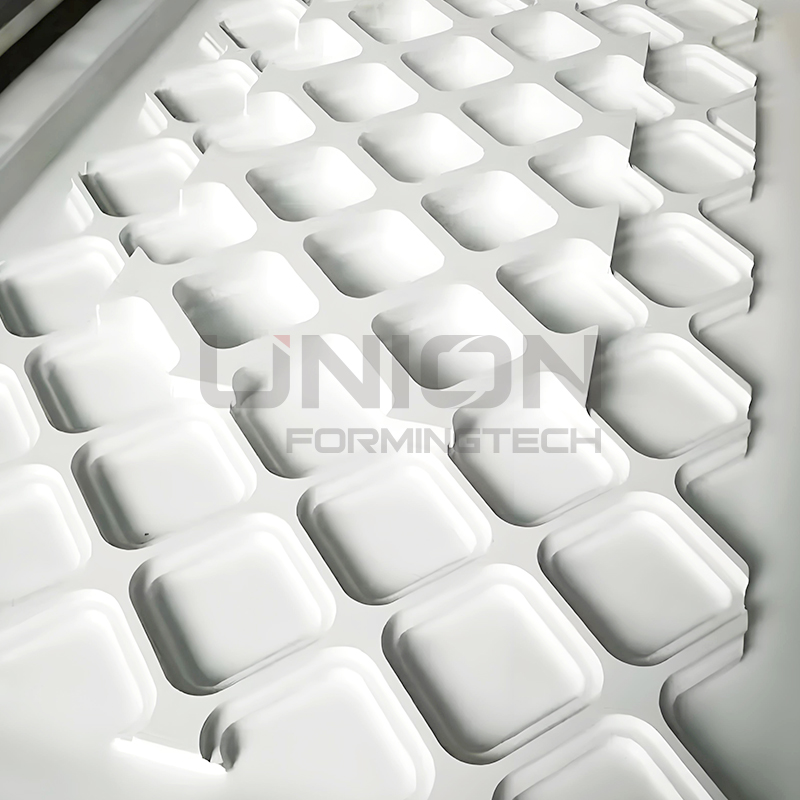

1. This equipment can apply various PVC films on furniture, cabinets, speakers, paint-free doors and other materials in three dimensions

2. Silicone plate thickness can be added for hard package and soft package blister, thermal transfer and lamination of single-sided solid wood veneer

3. Customizable processing height. Please pay attention to the shape of the product. The PVC film needs to have a suitable stretching range

4. With inflation function

 Configuration:

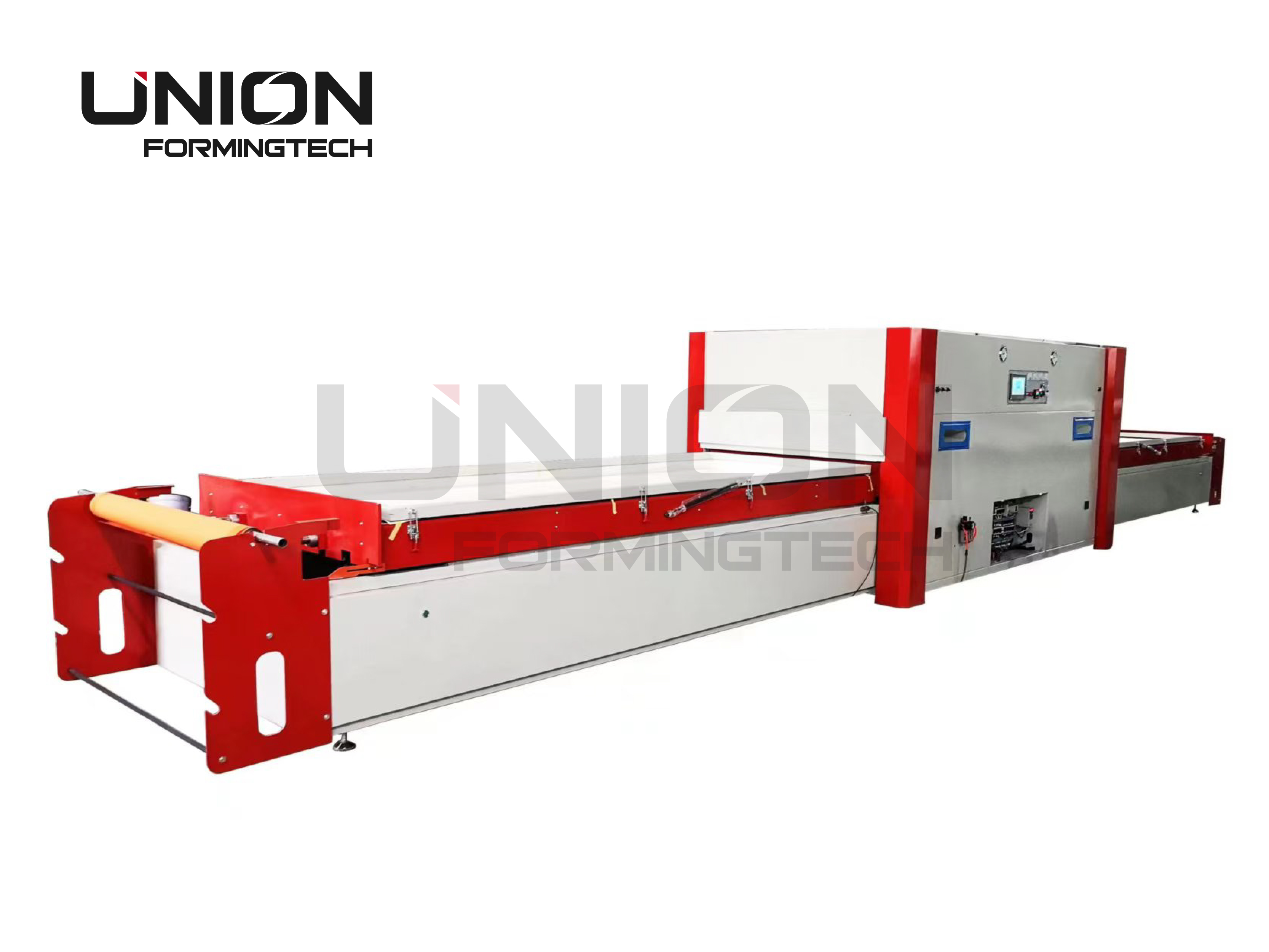

Intelligent positive and negative pressure vacuum laminating machine. The inner size of the workbench is 3000×1320 (double table)

1. The main parts are manufactured by advanced CNC machining centers

2. The frame is all processed by gantry milling to ensure the precision of the machine

3. The frame is made of manganese steel plate as a whole, and the overall structure is reasonable and can withstand high-strength pressure

4. The heating plate uses aviation-grade aluminum profiles, which has better heat transfer effect and more uniform temperature

5. The heating system uses heat transfer oil circulation heating, and the temperature is uniform. The machine is equipped with bottom heating, saying goodbye to winter edge opening

6. 3200MM super-long table, the walking system is controlled by heavy-duty inverter, which effectively prevents workpiece displacement

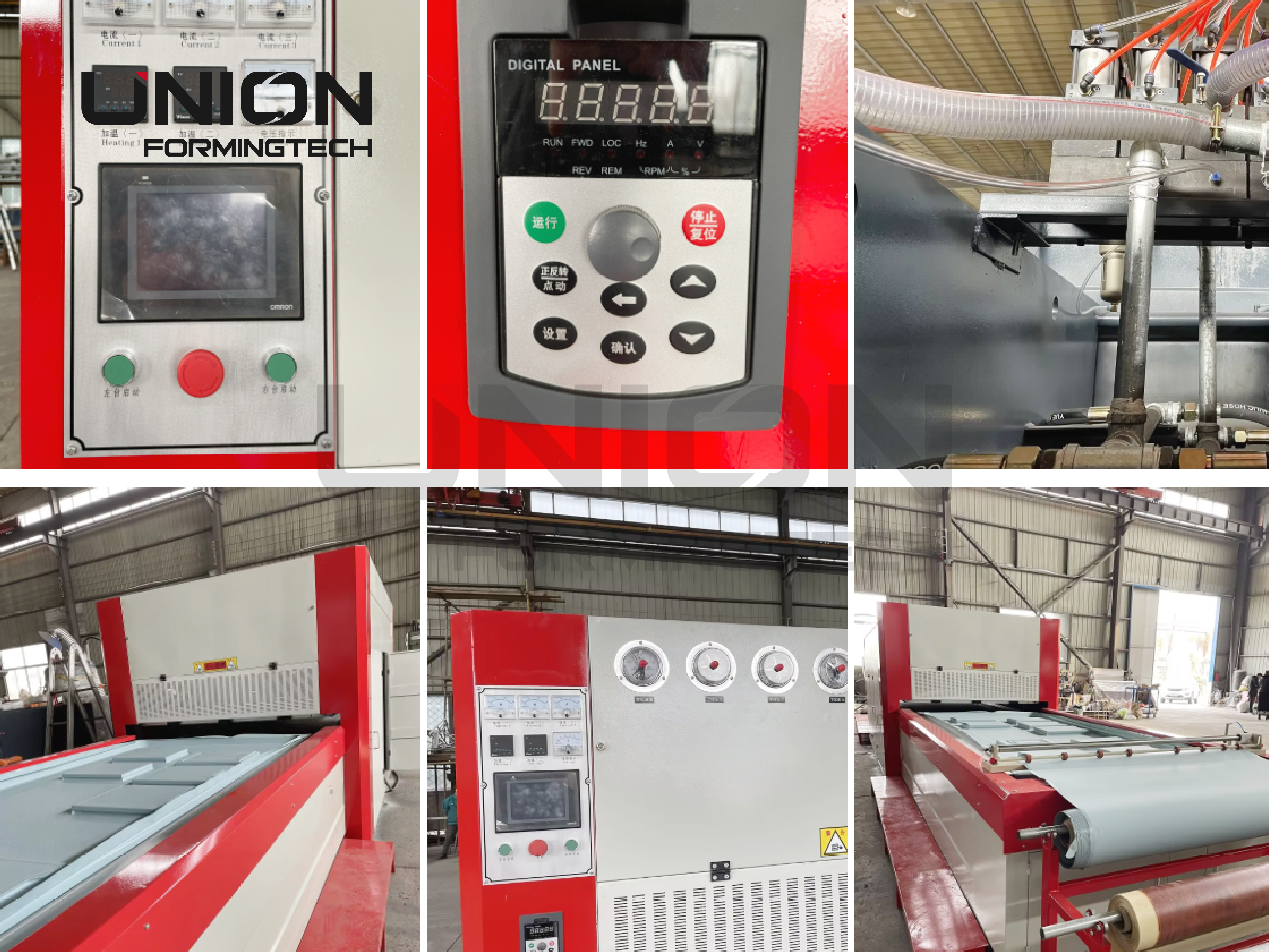

7. The control system adopts Japanese Omron PLC control, human-machine interface operation, high degree of automation, and multiple working modes. To adapt to different workpiece processing

8. The lifting of this machine adopts hydraulic double pump high and low pressure control respectively, low pressure lifting, high pressure sealing, to avoid the single oil pump motor pressure is easy to damage

9. The platform lifting is assisted by the thickened balance rod rack, high stability, reducing the damage of the oil cylinder caused by asynchronous lifting

10. 8 precision oil cylinders, the seal adopts imported seals, effectively preventing oil leakage of the oil cylinder

11. Equipped with automatic film cutting knife function, the cutting section is in a straight line state, saving film skin and improving production efficiency

12. Aluminum seat chrome-plated bearing steel linear guide rail, extremely low noise

13. High-flexible cable, PU air pipe, chrome-plated high-temperature wire

14. The workbench adopts Shanghai Hongqitai vector inverter to enter and exit, which runs more smo

Technical parameters:

1. Overall dimensions: 11000×2100×2050

2. Internal dimensions of the workbench: 3000×1320 (double table)

3. Maximum processing height: 36mm

4. Total power: 55KW

5. Machine weight: about 17T

6. Power supply: three 380V 50Hz
