Functions and features:

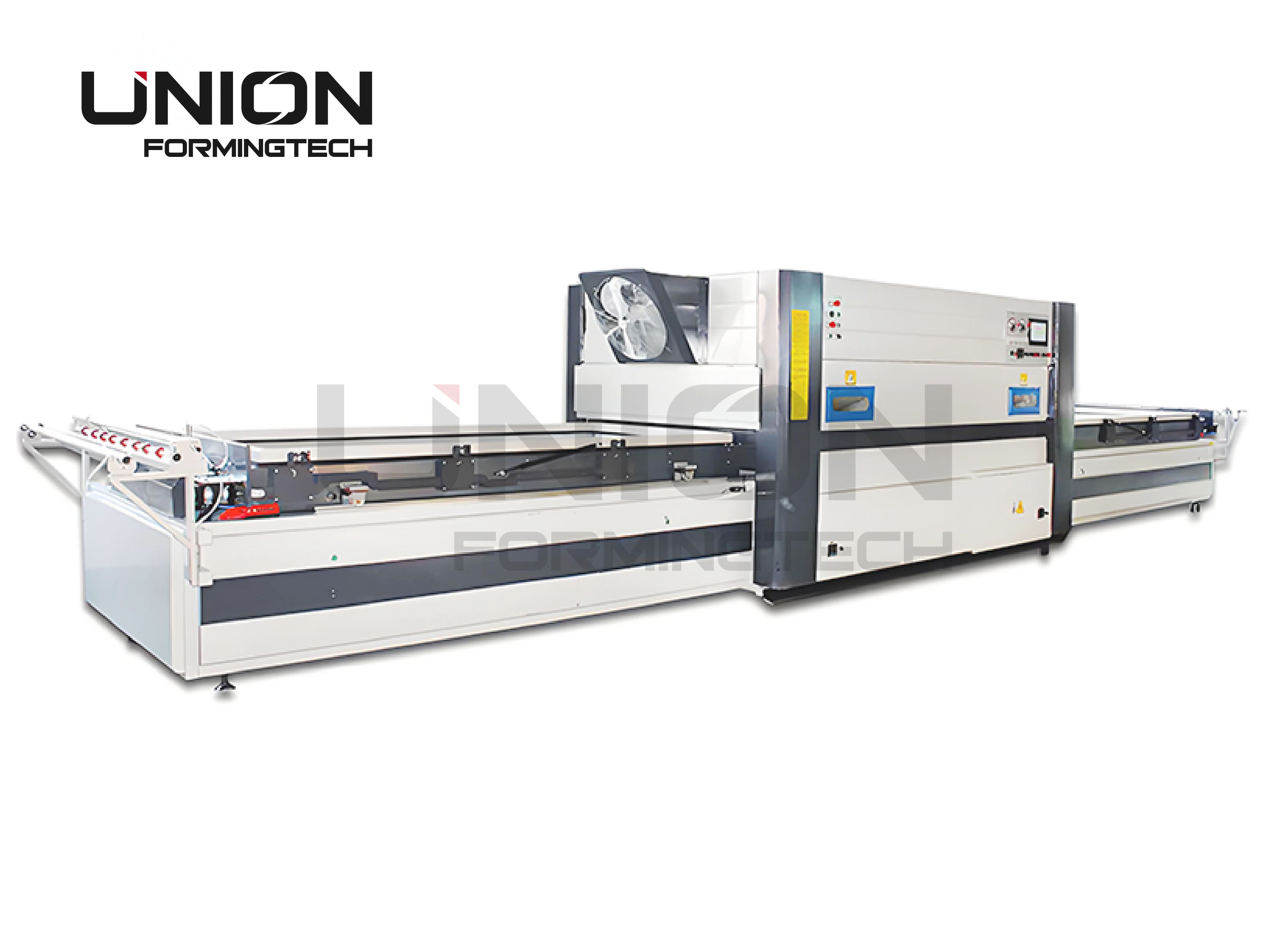

 Special laminating machine for high gloss, high lines and handle-free cabinets

1. This equipment can apply various PVC films on furniture, cabinets, speakers, paint-free doors and other materials in three dimensions

2. Silicone plate thickness can be added for hard-pack and soft-pack blister, thermal transfer and lamination of single-sided solid wood veneer

3. Machines with processing height within 1.9MM can be customized, but please pay attention to the shape of the product, and the PVC film needs to have a suitable stretching range

4. With inflation function

 Configuration:

 Laminating machine workbench size 1.4*3.1 with upper heating and lower heating shell steel plate thickness 1.4mm

1. Equipped with Shanghai Xikeshi 140 pump, silent and energy-saving vacuum pump

2. Exclusively equipped with 36*2 telescopic vacuum tube

3. The machine is surrounded by a heating system, infrared auxiliary heating

4. Equipped with cold air device, rapid cooling

5. Aluminum seat plated bearing steel linear guide, no noise

6. Tooth height 10 mm rack frequency conversion transmission, more stable, door panel is not easy to shift

7. Adsorption is equipped with 10 inches Computer touch screen control, PLC intelligent control system, 12 recipe memory functions

8. Equipped with three 1.8-meter large tanks, the explosive force is stronger and the blister is more in place, and the secondary heating high and low pressure blister adsorption function is more effective

9. Automatic locking and automatic film cutting are neat and labor-saving, and the work efficiency is high

 Technical parameters:

 Dimensions 11100*1900*1800mm, inner diameter of workbench: 1300*3000/1140 (using PVC film width 1400mm/1250mm)

Maximum processing thickness: 60MM (including pad), rated working pressure negative pressure》-0.095Mpa

Total power: 25KW actual power consumption 7-9KW

The weight of the whole machine is about 3.5T

Power supply: three-wire four-wire 380,
