Function and features:

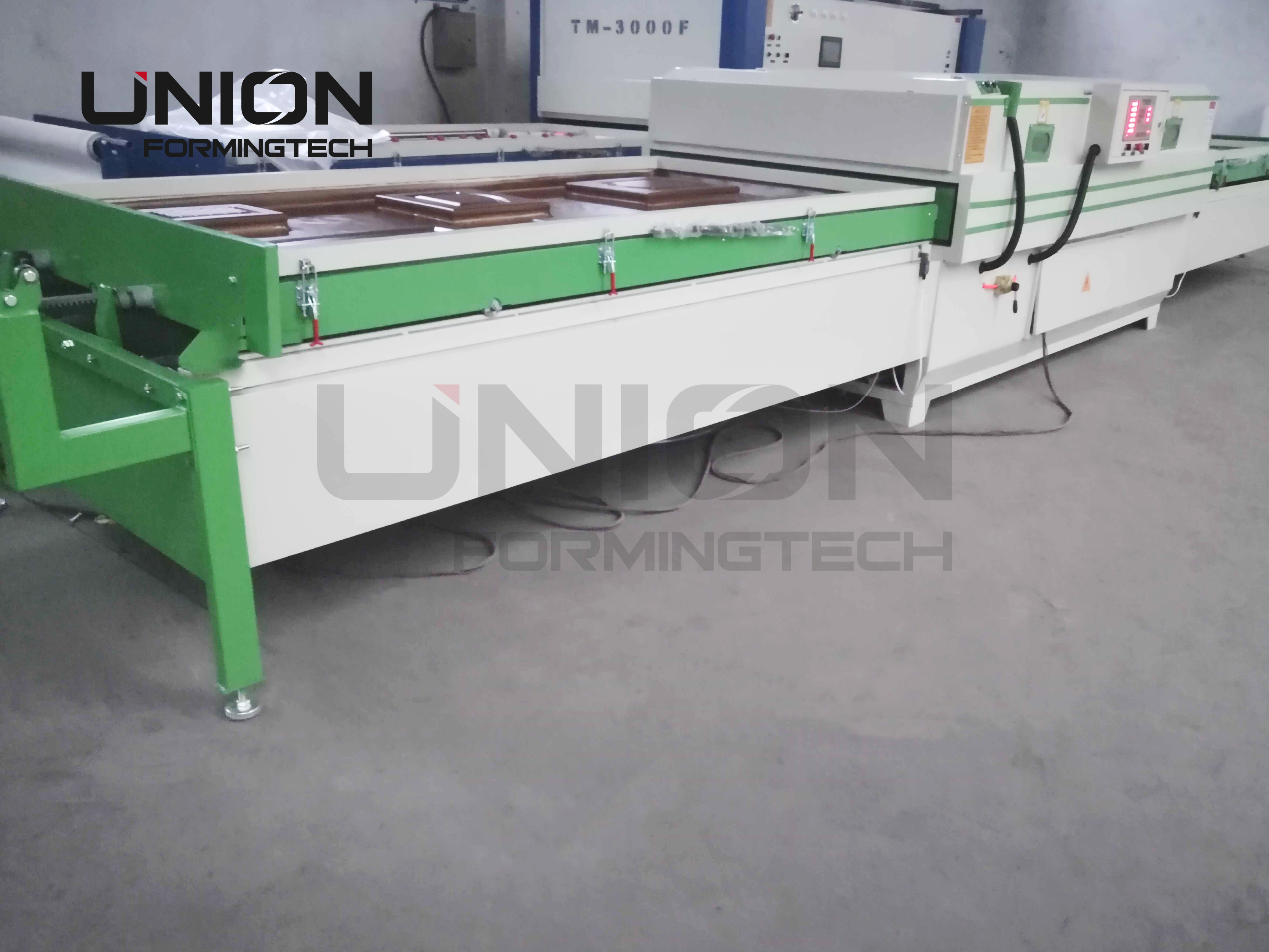

 High gloss, high line, handle-free cabinet special laminating machine

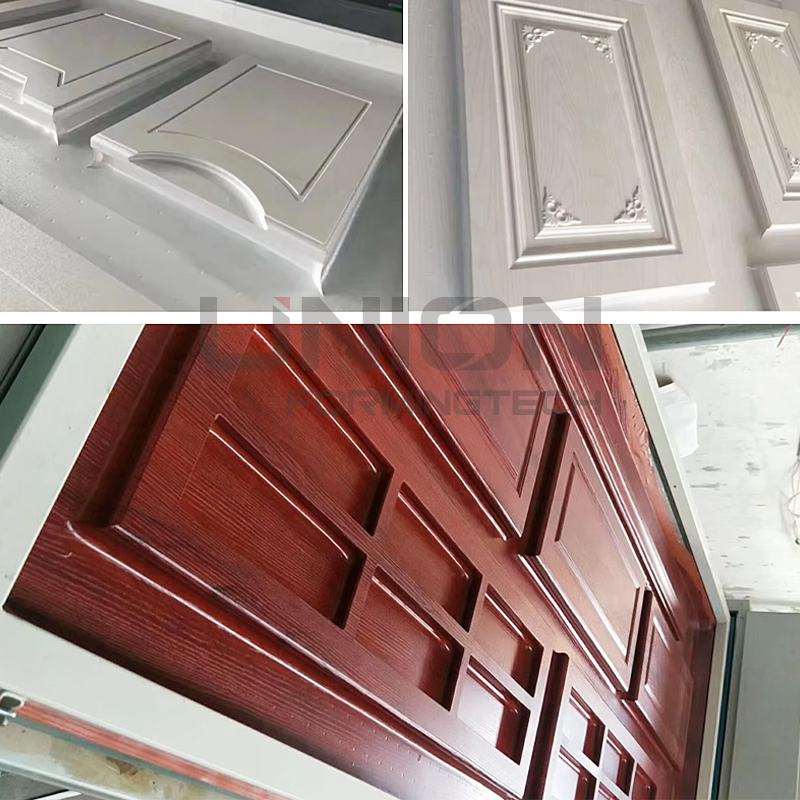

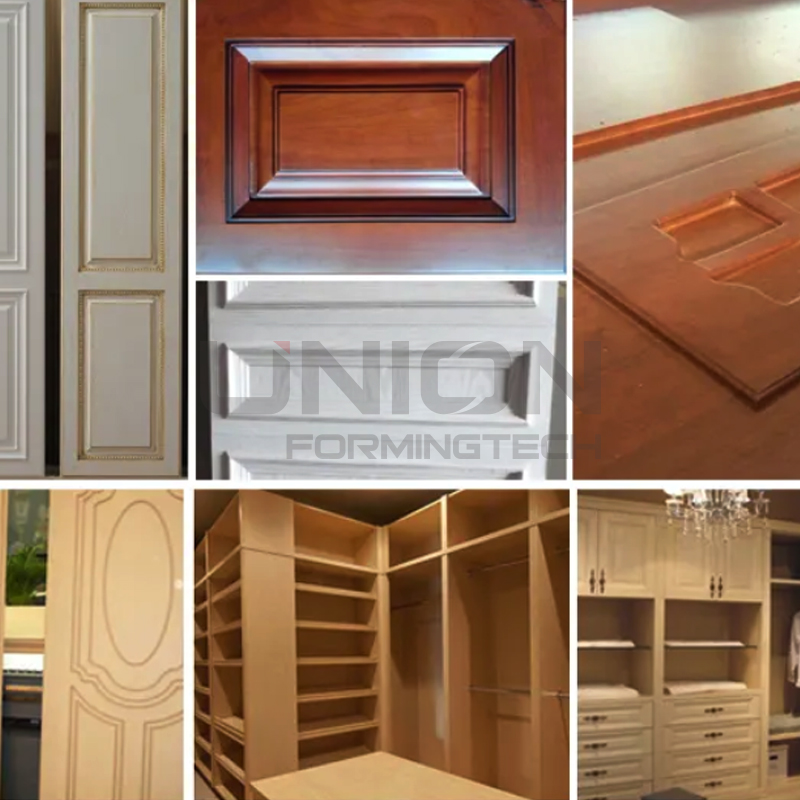

1. This equipment can three-dimensionally coat various PVC films on furniture, cabinets, speakers, paint-free doors and other materials.

2. Silicone plate thickness can be added for hard package and soft package blister, thermal transfer and single-sided solid wood veneer laminating.

3. The machine with a processing height of less than 1.9MM can be customized, but please pay attention to the shape of the product, and the PVC film needs to have a suitable stretching range.

4. With inflation function

Configuration:

 The laminating machine workbench size is 1.4*3.1, equipped with upper heating, infrared auxiliary heating, shell steel plate thickness 1.4MM

1. Equipped with Shanghai Xikeshi 100 pump, silent and energy-saving vacuum pump.

2. The diameter is 32*1.5 telescopic vacuum tube.

3. The bottom plate is sprayed with solid card bottom plate 4 mm.

4. The vacuum suction pressure can be adjusted.

5. Aluminum seat plated bearing steel linear guide, no noise.

6. 10mm tooth height rack frequency conversion transmission, more stable, door panel is not easy to shift.

7. The guide rail adopts train guide rail and is durable.

8. It adopts vacuum control valve operation, equipped with 1.8m large tank with stronger explosive power and more in place blister cabinet door panel.

Technical parameters:

 Dimensions 8800*1900*1350mm

Inner diameter of workbench: 1300*3000/1140 (using PVC film width 1400mm/1250mm)

Maximum processing thickness: 60MM (including pad)

Rated working pressure: negative pressure -0.095Mpa

Total power: 19KW

Actual power consumption: 8KW

Weight of the whole machine is about: 2.5T

Power supply: three-wire four-wire 380, 50HZ.
