Application:

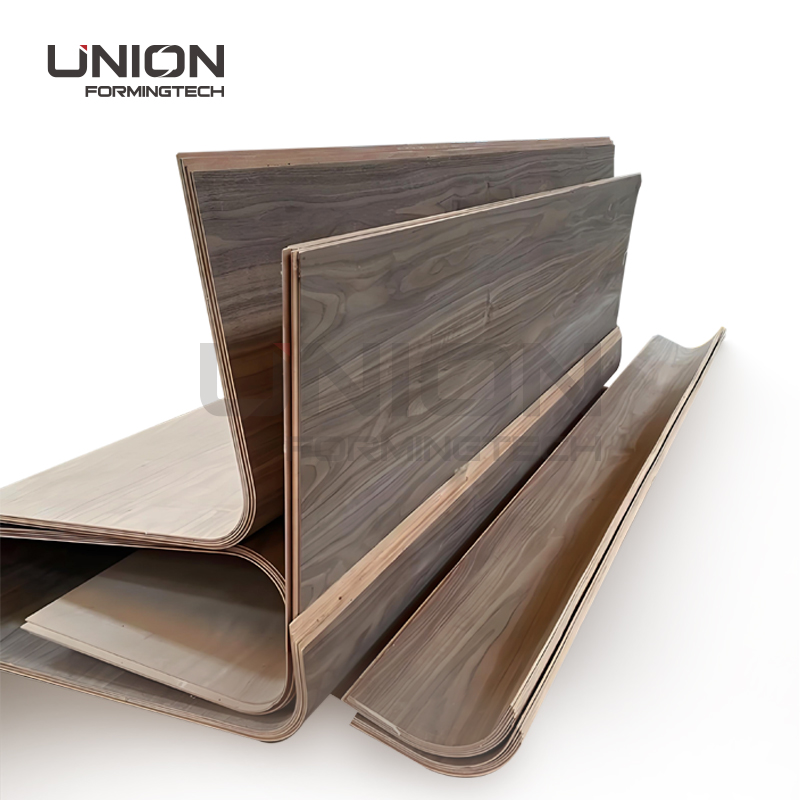

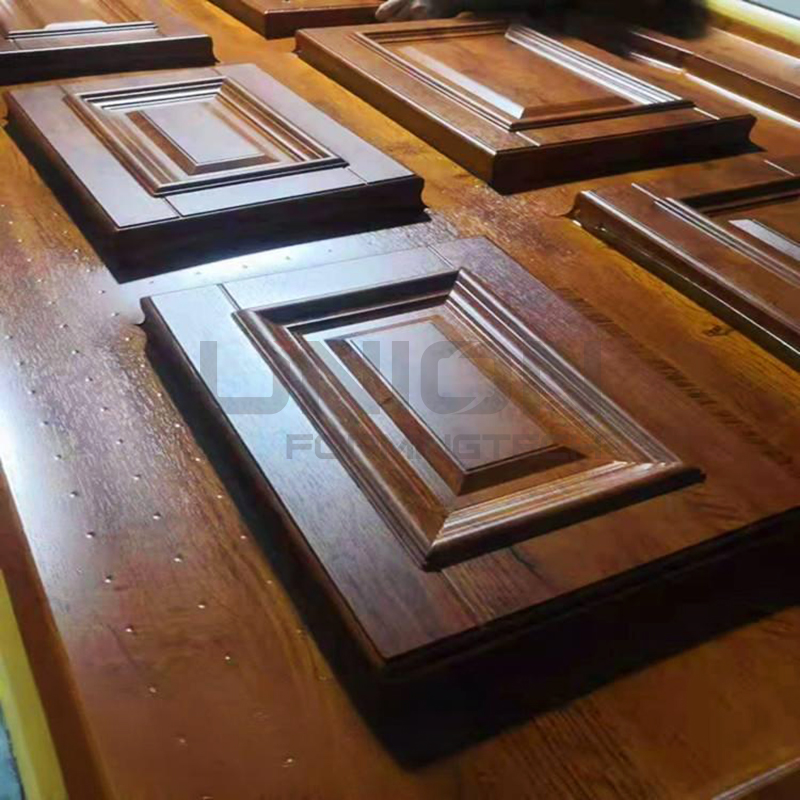

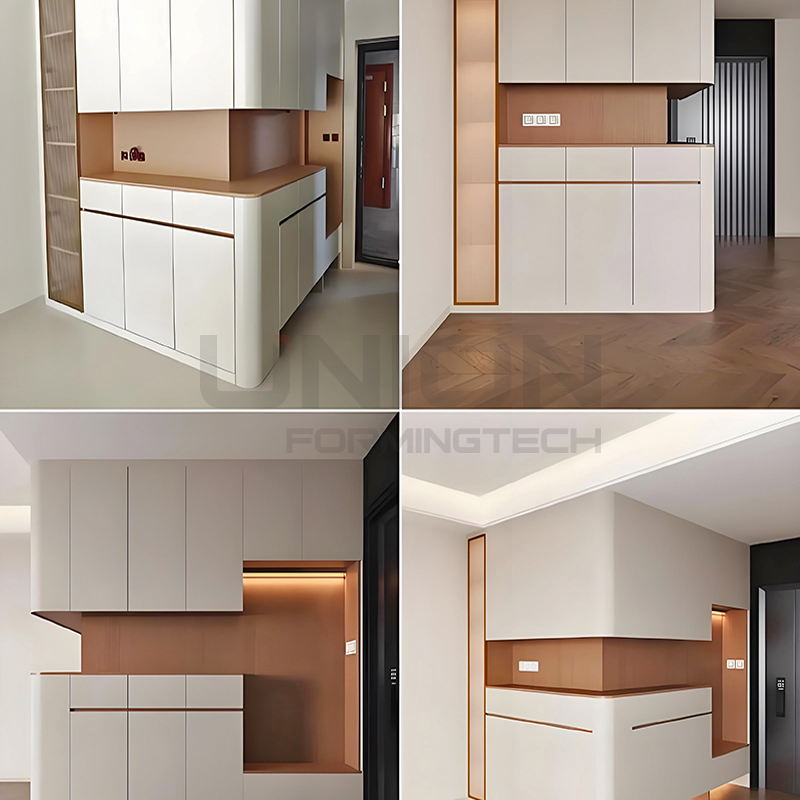

This equipment can not only apply various PVC films on various materials such as home furnishings, arc production, arc film, cabinets, audio, paint-free doors, etc., but also can be used for thermal transfer film and veneer single-sided solid wood veneer lamination and multi-layer board bending.

 Equipment features:

This machine adopts upper heating function, the outer shell steel plate thickness is 1.4 mm, and other manufacturers are 1.0 or 1.2 mm.

1. Infrared radiation heating

2. Standard Shanghai brand 100 vacuum pump

3. Lengthened and thickened vacuum tank

4. Thickened steel wire tube

5. With thickened pipe inflation function, heavy chrome-plated feet, laser cutting of parts

6. The machine adopts upper heating system, 12 heating systems

7. Vacuum adsorption adopts valve control system, and the cabinet adsorption is more in place

8. High-flexible cable, PU air pipe, chrome-plated high-temperature wire

 Technical parameters

1. Overall dimensions: 2800×1680×1350

2. Workbench inner frame size: 2500×1300×60

3. Maximum processing height: 450mm (including pad size, to ensure the stretching range of PVC film)

4. Rated working pressure: negative pressure ≥0.095Mpa

5. Total power: 17KW

6. Actual power consumption: 7KW

7. Machine weight: about 1.5T

8. Power supply: three-phase four-wire 380V,50Hz
