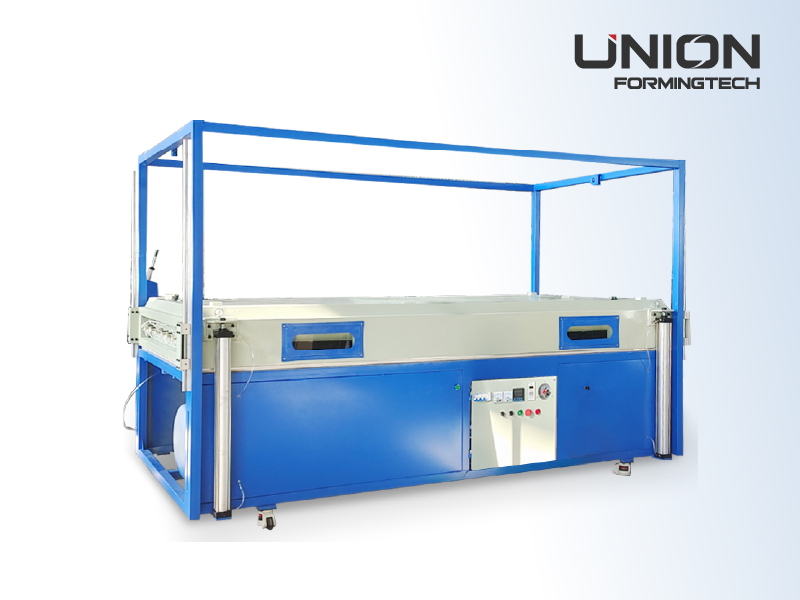

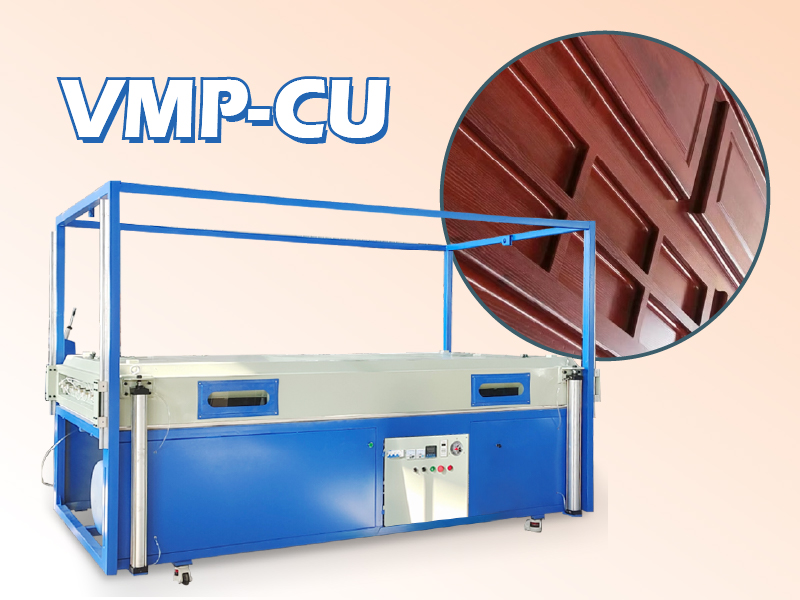

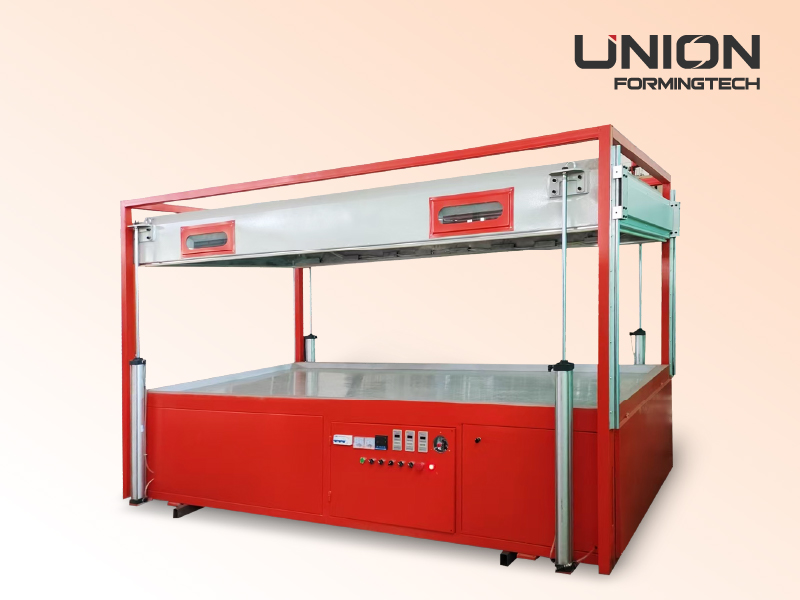

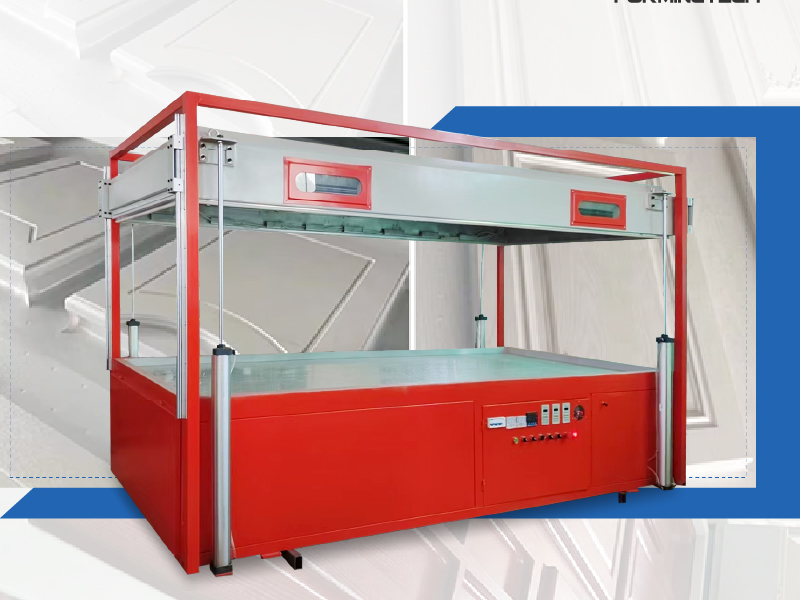

VMP-CU PVC Vacuum Laminating Machine for cabinet doors & panels

Application

This equipment can not only apply various PVC films on various materials such as home furnishings, arc production, arc film, cabinets, audio, paint-free doors, etc., but also can be used for thermal transfer film and veneer single-sided solid wood veneer lamination and multi-layer board bending.

Detail information

1.More strong structure

The outer shell steel plate thickness is 1.4 mm, and other manufacturers are 1.0 or 1.2 mm.

2.Steady heating system

Use infrared radiation heating tube,heating more even and service life more than 10000hours

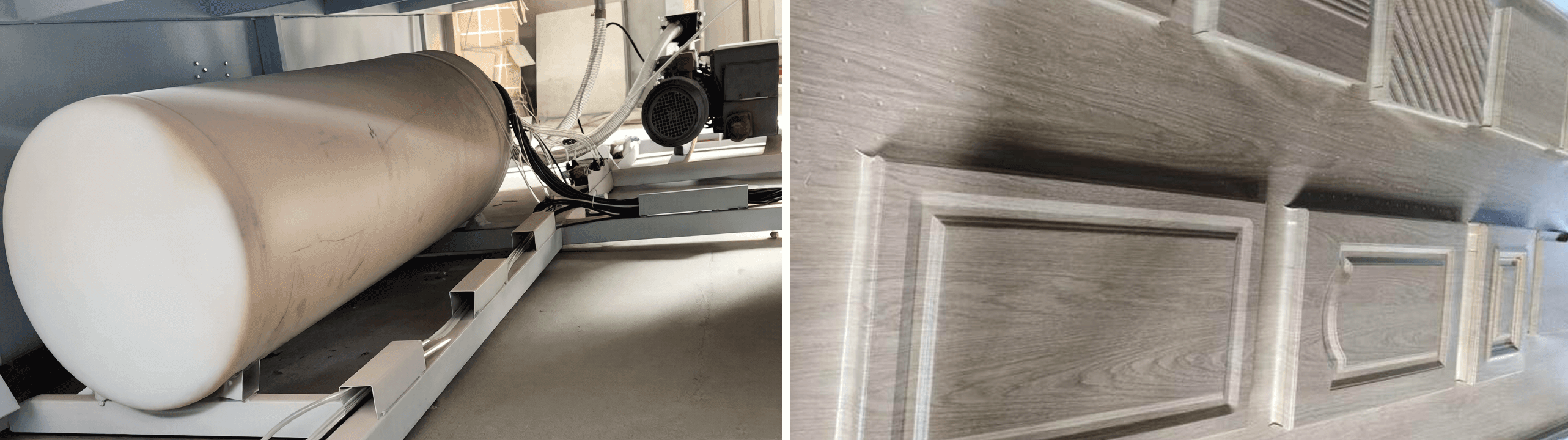

3.Powerful vacuum pump and big vacuum tank

For the vacuum pump 100M3/H negative pressure ≥0.095Mpa,Vacuum adsorption uses a valve control system and also install the vacuum tank,get the better laminated effect and extend the service life of vacuum pumps.

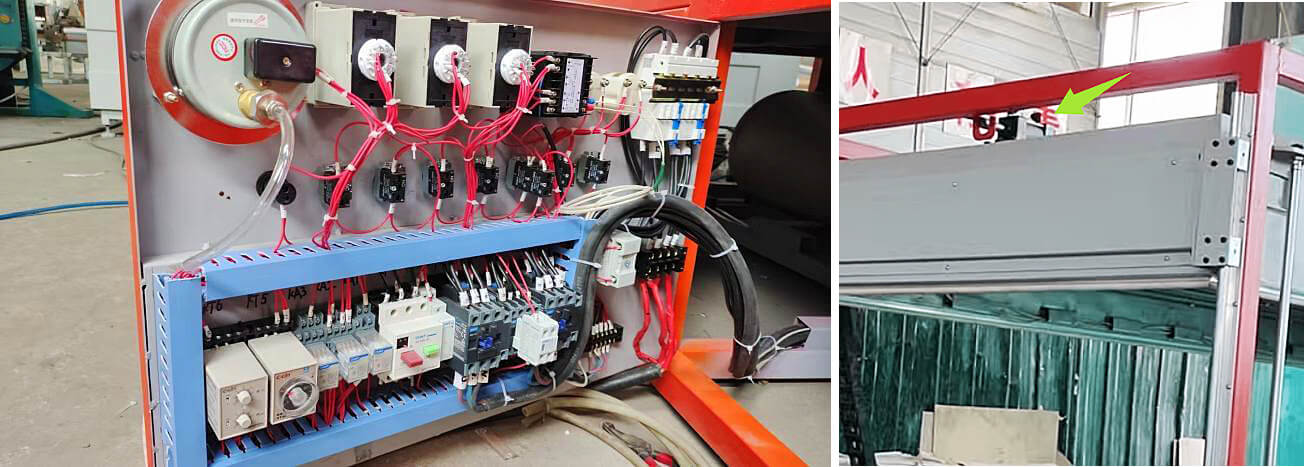

4.Better quality cable and vacuum air tube

High-flexibility cable, PU tubing, chrome-plated high-temperature wire.

5.Automatic locking function

When the heating chamber rises to the top, it automatically locks, making operation safer.

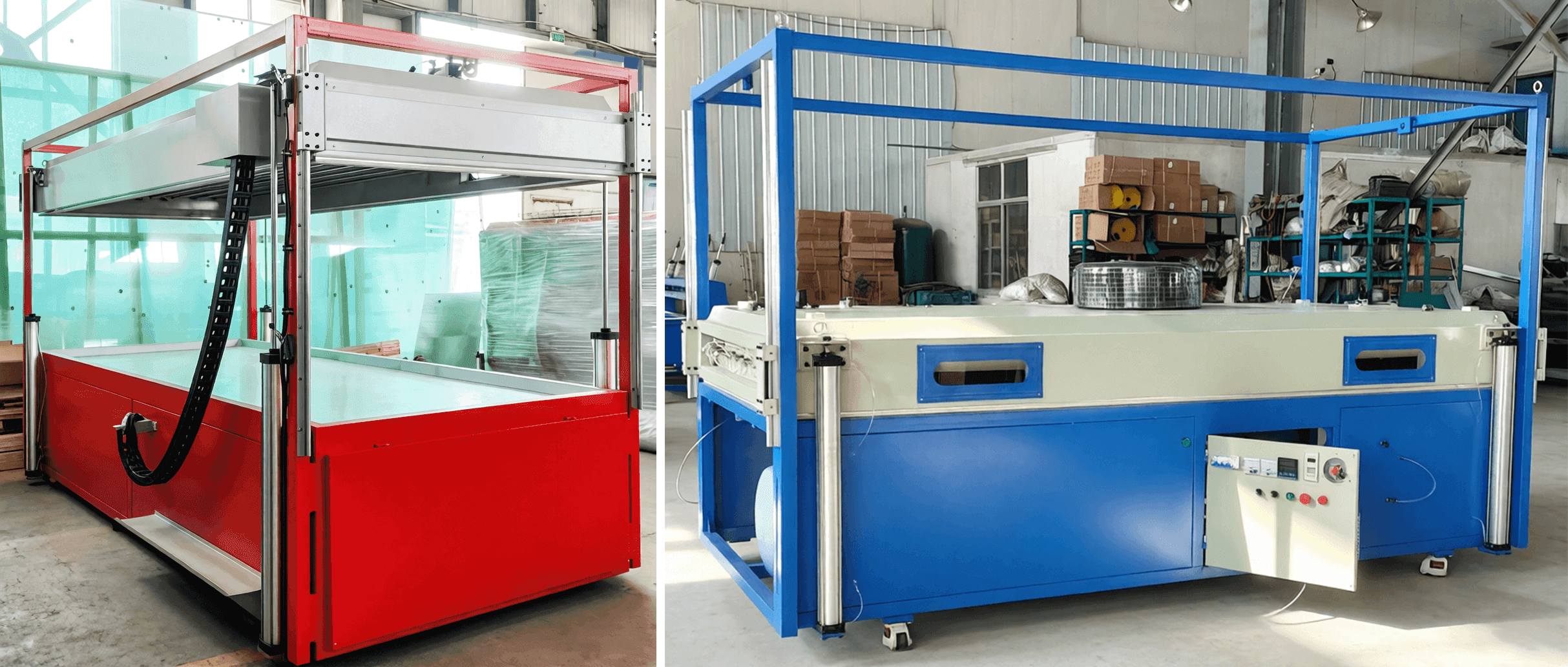

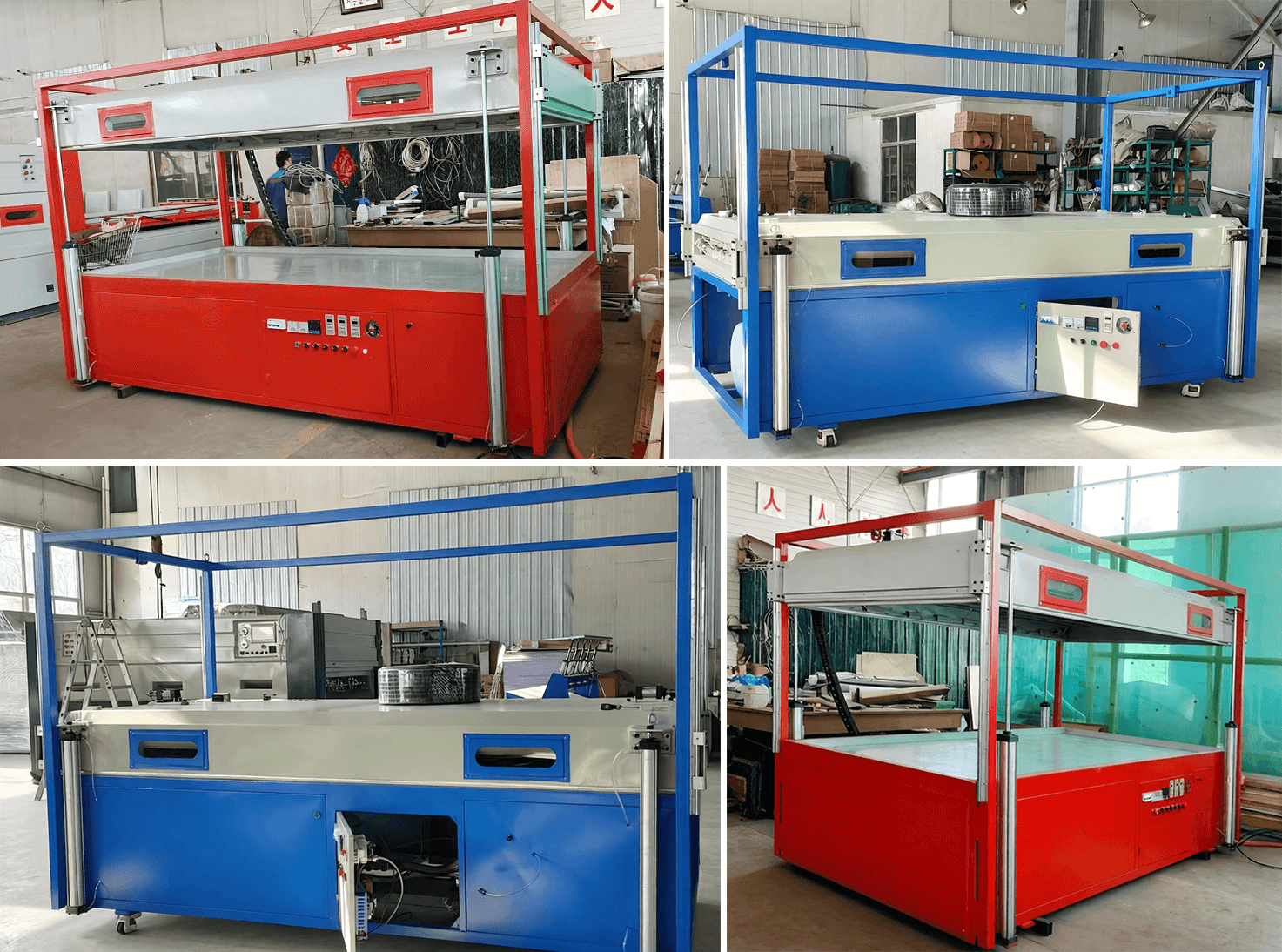

More Photos

Technical parameters

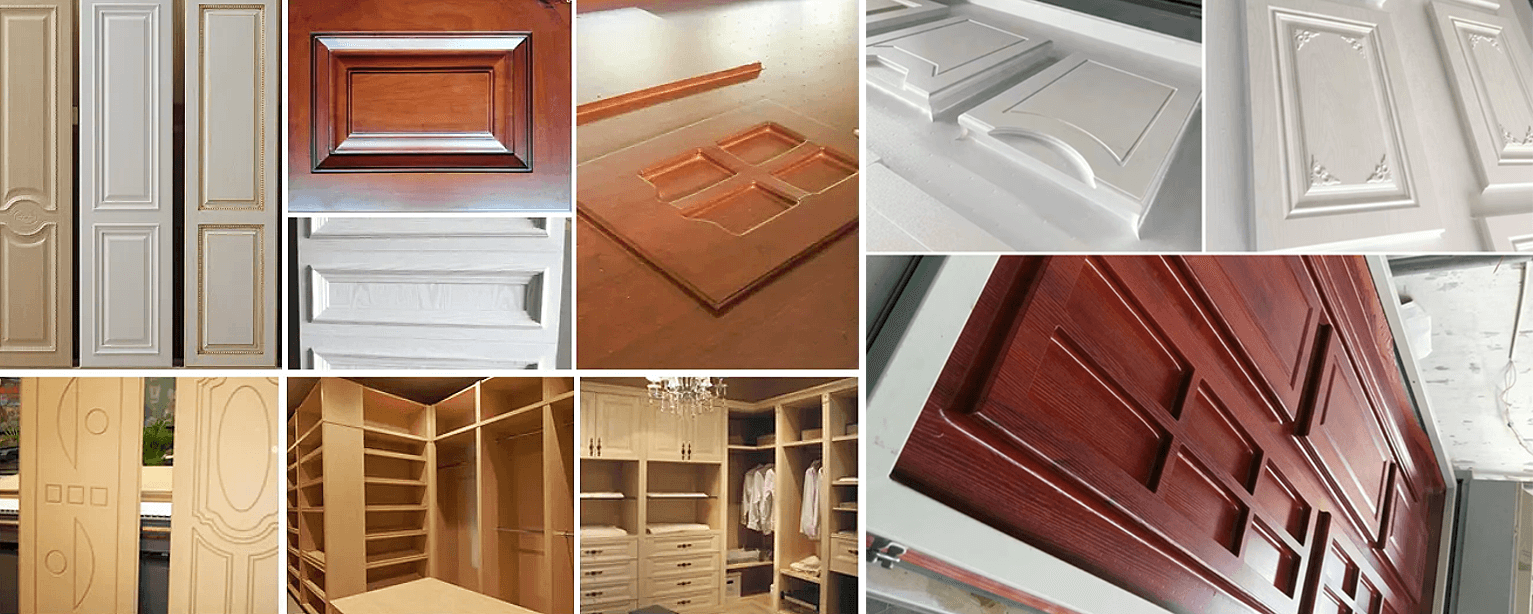

Finish samples

Related material supply

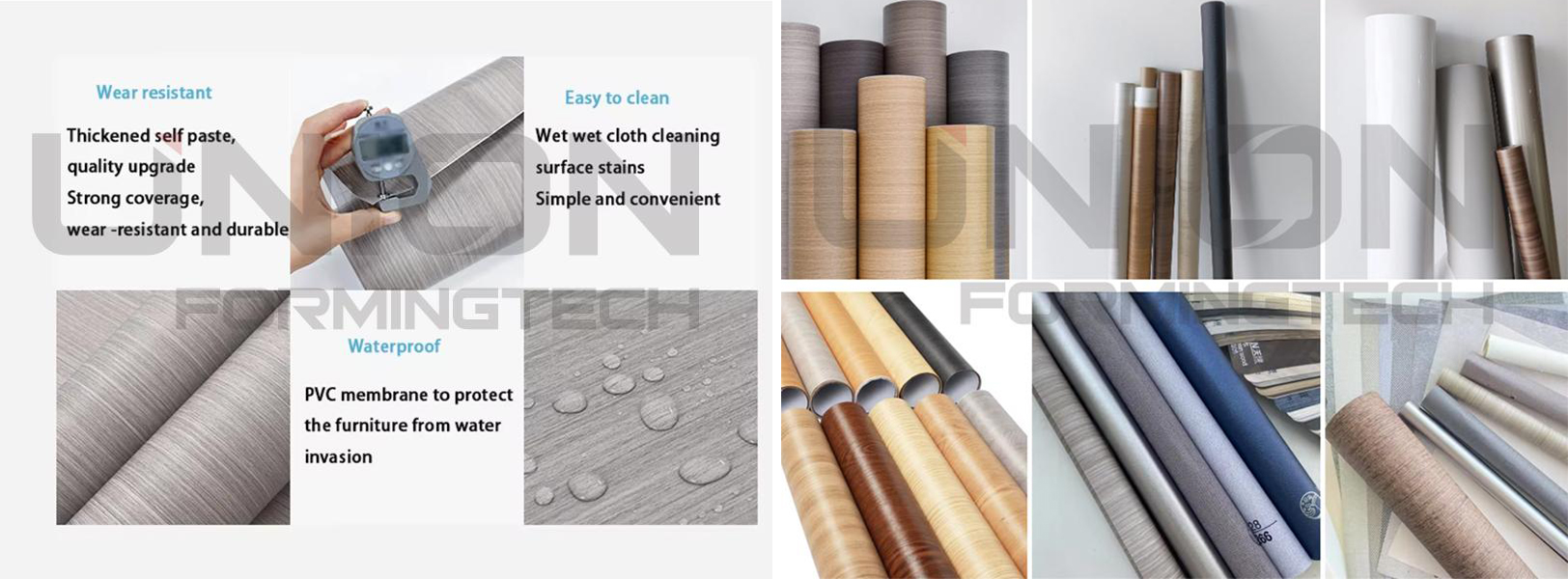

PVC film

PVC Film can be used to vacuum kitchen cabinet and wardrobe, vacuum or Laminate Interior doors(mdf door&wpc door), wrapping or coating the frame and architraves and also can laminate on the pvc wall panels.

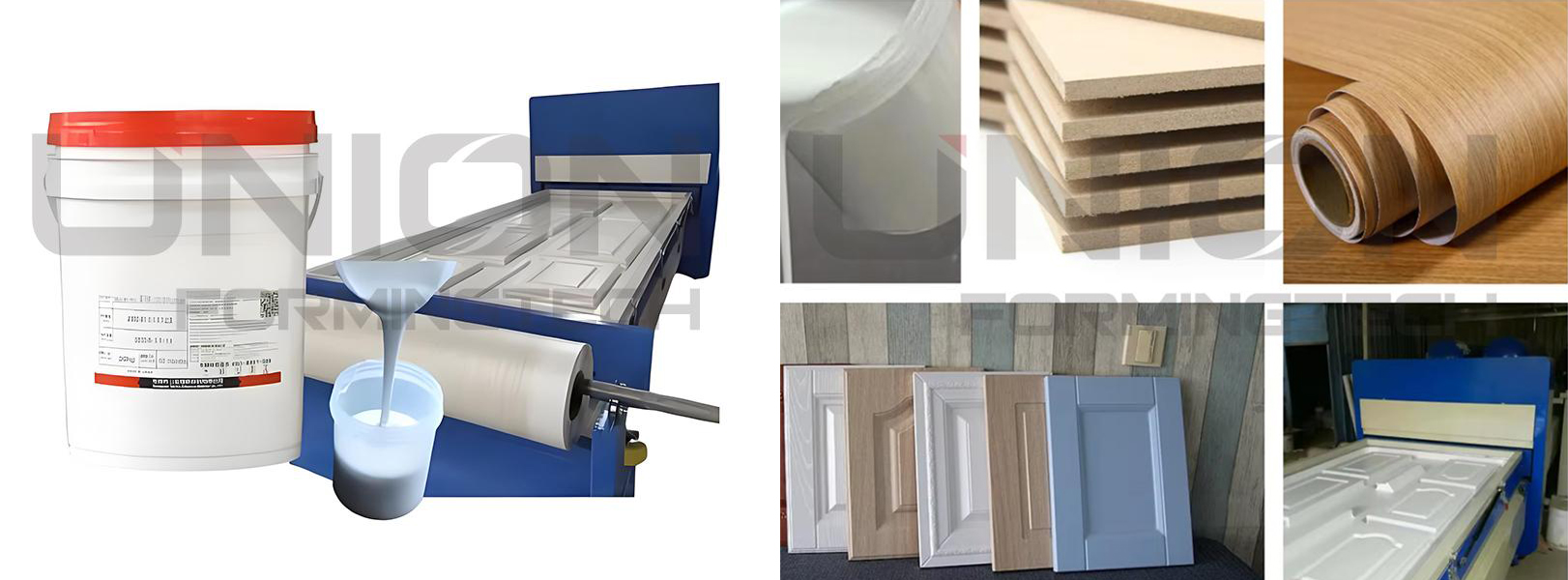

Glue

It's suitable for any kinds of vacuum membrane press machine,or spray gun.Bonding PVC with MDF etc.

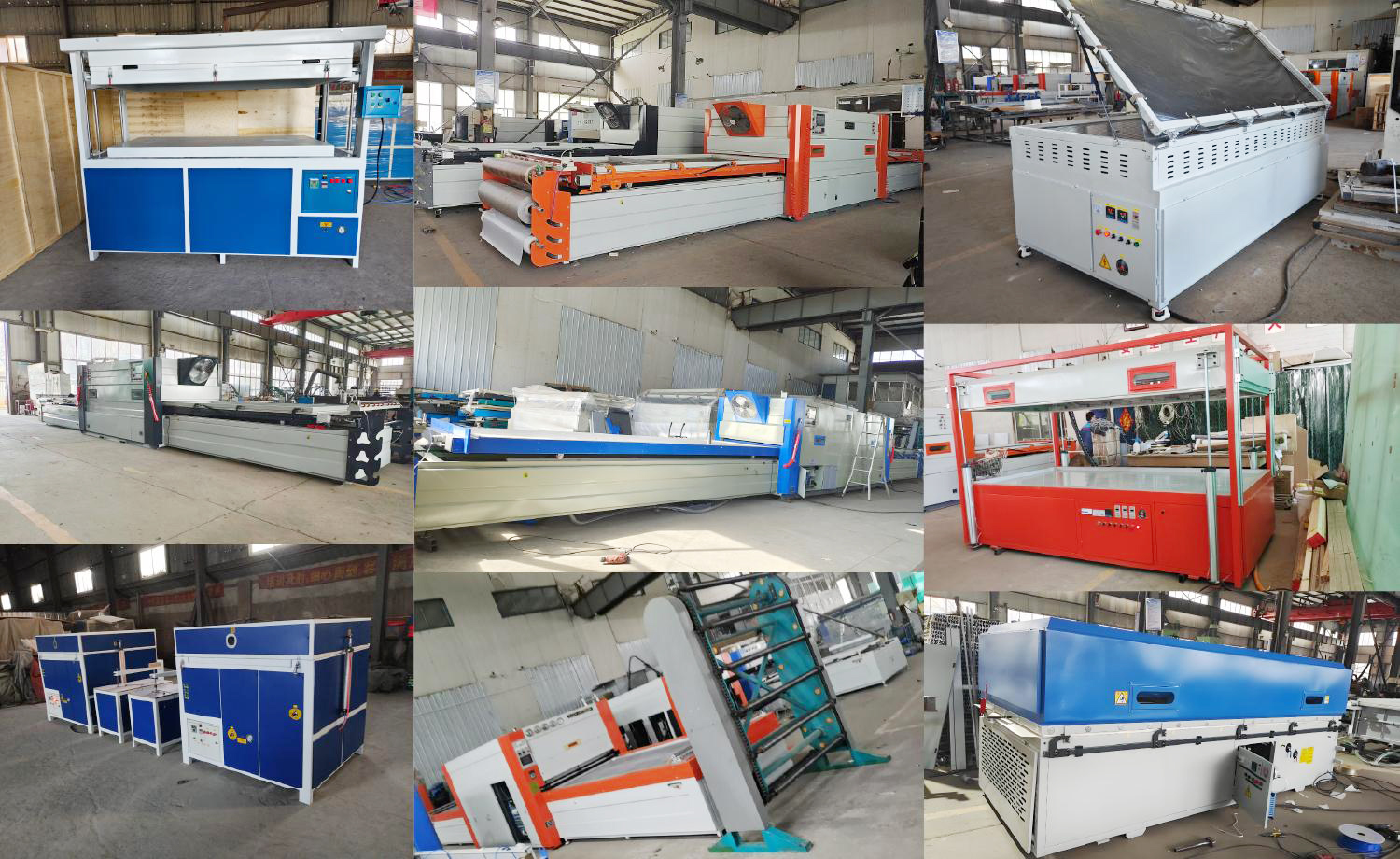

 Factory products photo
