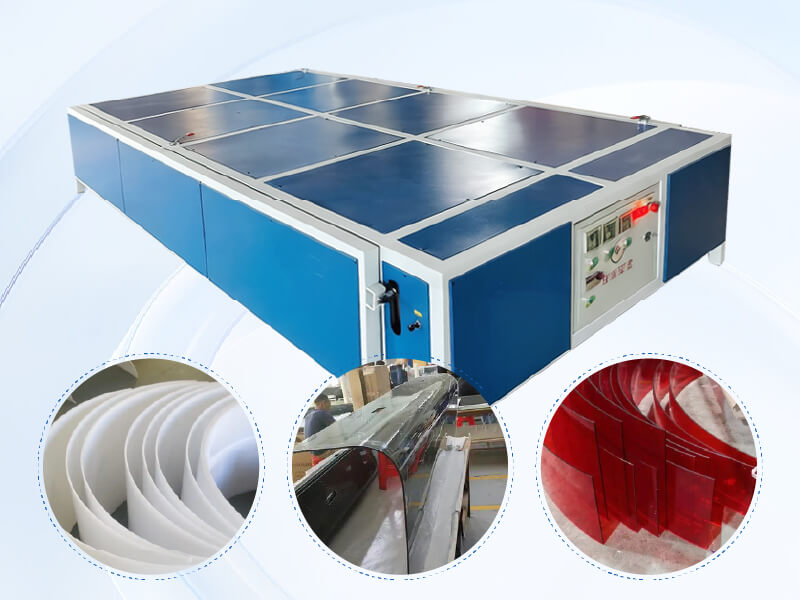

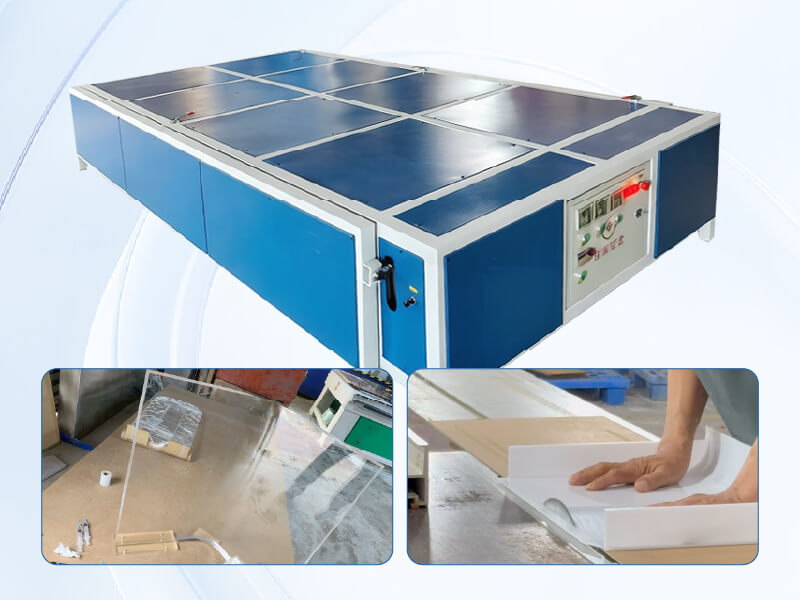

Vacuum Heating Oven For Acrylic Sheet For Plastic Processing
Application Industry and material :
2.Industrial & automobile decoration
3.Architectural rock climbing model making
4.Different machinery plastic parts making
5.Other thermoplastic material forming industrial

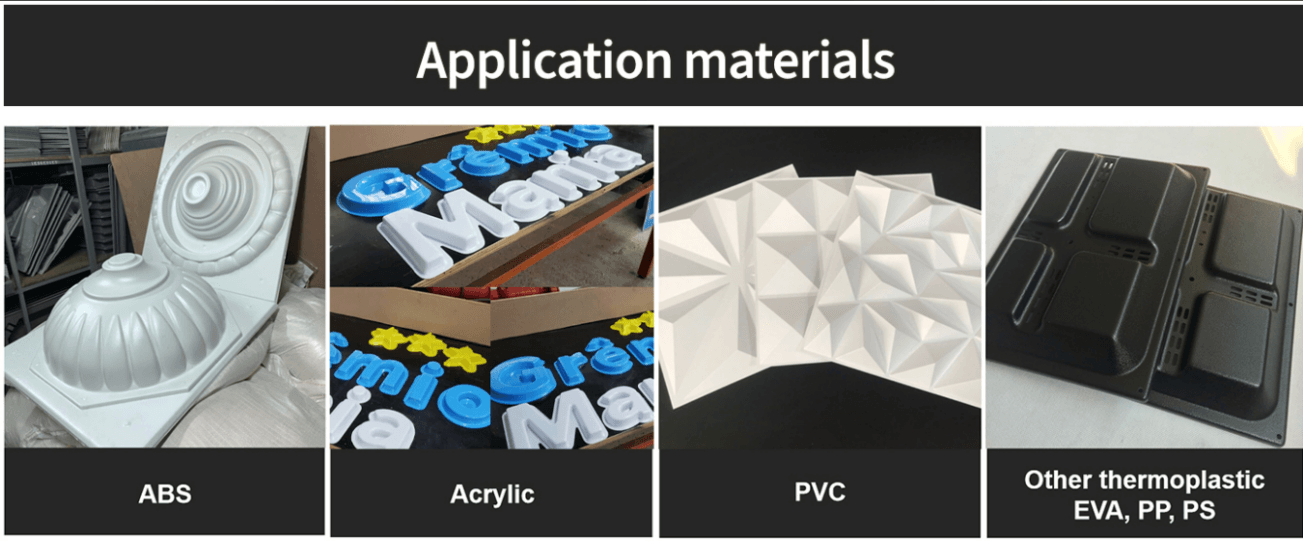

6.Application material: PMMA(Acrylic ), PVC,ABS,PE,PET ,Poly styrene ,poly propylene ect.

Mainly information:
1. Intelligent Temperature Control System
Features a custom-shaped reflector and thickened insulation layer for rapid heating, excellent thermal retention, and enhanced safety.

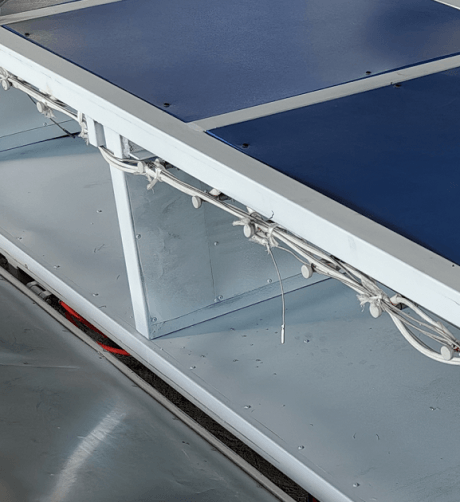

2. Precision Heating Module
Factory-customized for 24/7 continuous operation, with an 8,000-10,000-hour lifespan. Maintains ±5°C temperature stability to ensure uniform plate softening.

3. Zoned heating system
The heating chamber uses a zoned heating system, which can heat simultaneously or in separate zones, saving energy when heating small-sized boards.

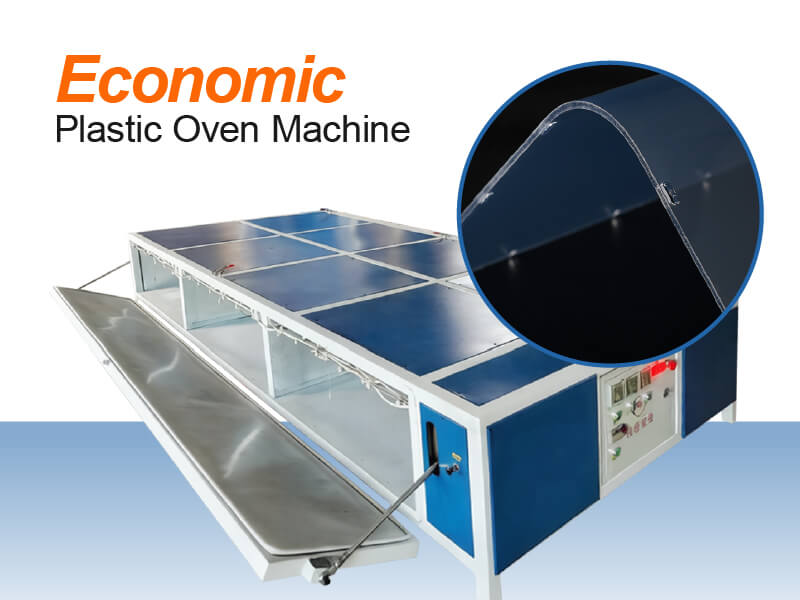

4. Pneumatic door
For the door open use pneumatic control,this way let the machine control become more easy.
Technical data:
Model | OVEN-1224 |
Suitable material | Acrylic,PVC,ABS thermoplastic material |
Material thickness | 1-5mm (Accept customized) |
Oven inside size | 1320*2540mm(Accept customized) |
Material size | 1220*2440mm |
Power | 12KW |
Heating tube | Glass quartz heating tube |
The door open method | Pneumatic door |
Working voltage | 380V 50HZ 3Phase(4 wire) |
Power | 40m3/h (or 63m3/h) |
Weight | 550KGS |
Working voltage | 380V50HZ3P |
Package size | 3000x1550x900mm |

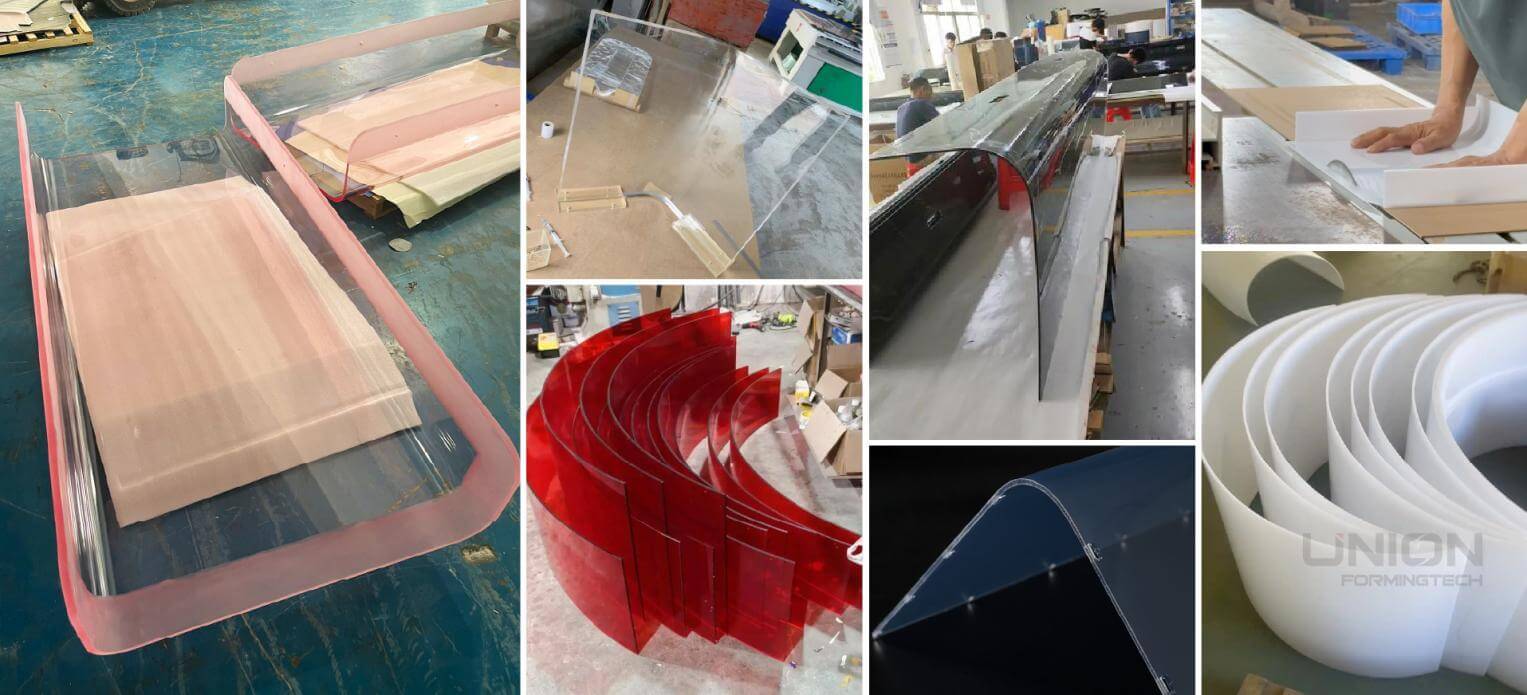

Finish Sample showing :

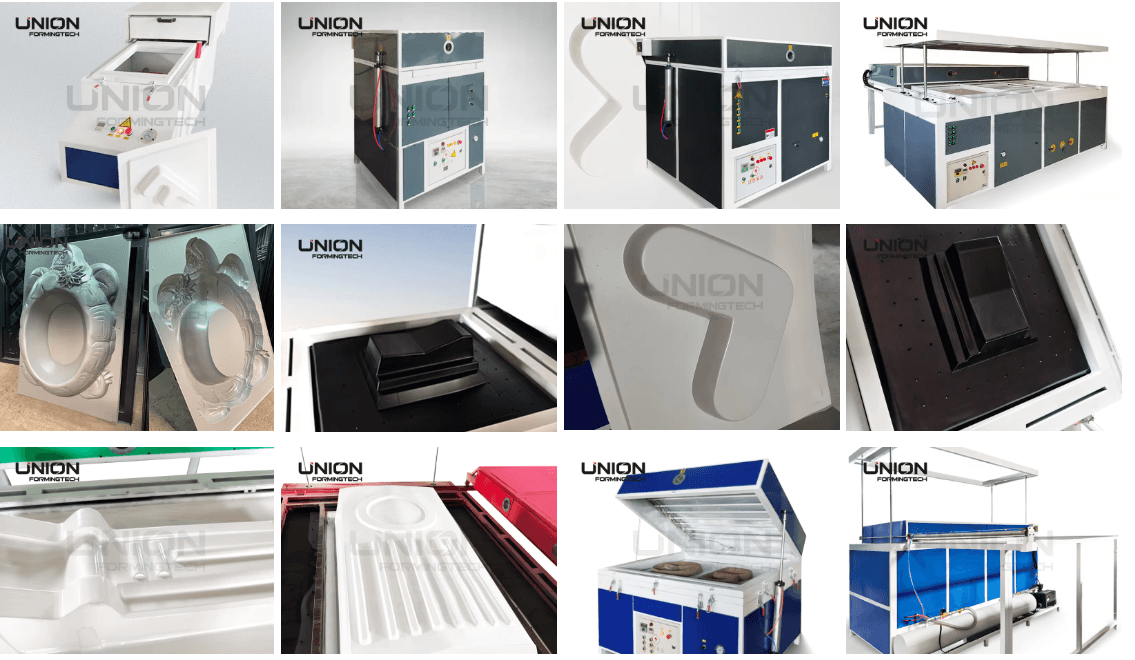

Related products:
